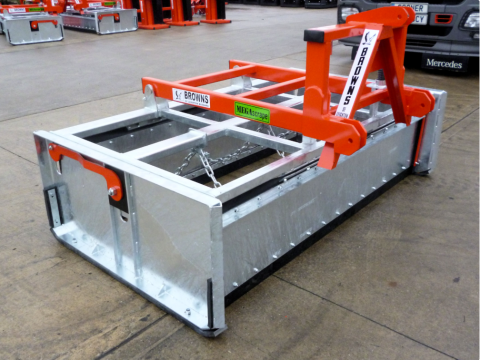

Browns XL "Mega" Megascrapes Yard Scraper
Machine Information
Machine Information
- Available to order
- Finance options available
- Part exchange considered
- Delivery available
- Contact us for current lead times
Request a Quote
Request a Quote
Looking for pricing, finance options or additional specifications? Click the Request a Quote button above and our team will be in touch.
Description
Description
For scraping livestock passages and farmyard surfaces. Confirm the required blade width and mounting arrangement with your enquiry.
Price on application. Request a quotation from Agri Service Parts for the selected model, options and delivery. Availability and lead time will be confirmed with your quote.
Compare models
Scroll across to see all listed specifications.
| Model | CODE | WORKING WIDTH | WEIGHT | HEIGHT |
|---|---|---|---|---|
| 6'0" (REAR MOUNTED) | 66250 | 1829mm | 471kg | 1259mm |
| 6'6" (REAR MOUNTED) | 66255 | 1982mm | 484kg | 1259mm |
| 7'0" (REAR MOUNTED) | 66260 | 2134mm | 497kg | 1259mm |
| 8'0" (REAR MOUNTED) | 66265 | 2438mm | 522kg | 1259mm |
| 6'0" (FRONT MOUNTED) | 69816 | 1829mm | 471kg | 1259mm |
| 6'6" (FRONT MOUNTED) | 69817 | 1982mm | 484kg | 1259mm |
| 7'0" (MOUNTING TO CONFIRM) | 69818 | 2134mm | 497kg | 1259mm |
| 8'0" (FRONT MOUNTED) | 69819 | 2438mm | 522kg | 1259mm |
Mounting to confirm: Browns' source places code 69818 among front-mounted options but labels it rear mounted. We will confirm the correct bracket arrangement with your quotation.
Specifications by model
6'0" XL "MEGA" MEGASCRAPE (REAR MOUNTED) — specifications
- CODE
- 66250
- OVERALL WIDTH
- 1979mm
- WORKING WIDTH
- 1829mm
- DEPTH
- 1536mm
- HEIGHT
- 1259mm
- WEIGHT
- 471kg
6'6" XL "MEGA" MEGASCRAPE (REAR MOUNTED) — specifications
- CODE
- 66255
- OVERALL WIDTH
- 2132mm
- WORKING WIDTH
- 1982mm
- DEPTH
- 1536mm
- HEIGHT
- 1259mm
- WEIGHT
- 484kg
7'0" XL "MEGA" MEGASCRAPE (REAR MOUNTED) — specifications
- CODE
- 66260
- OVERALL WIDTH
- 2284mm
- WORKING WIDTH
- 2134mm
- DEPTH
- 1536mm
- HEIGHT
- 1259mm
- WEIGHT
- 497kg
8'0" XL "MEGA" MEGASCRAPE (REAR MOUNTED) — specifications
- CODE
- 66265
- OVERALL WIDTH
- 2588mm
- WORKING WIDTH
- 2438mm
- DEPTH
- 1536mm
- HEIGHT
- 1259mm
- WEIGHT
- 522kg
6'0" "MEGA" MEGASCRAPE (FRONT MOUNTED) — specifications
- CODE
- 69816
- OVERALL WIDTH
- 1979mm
- WORKING WIDTH
- 1829mm
- DEPTH
- 1536mm
- HEIGHT
- 1259mm
- WEIGHT
- 471kg
- BRACKETS
- Not included
6'6" XL "MEGA" MEGASCRAPE (FRONT MOUNTED) — specifications
- CODE
- 69817
- OVERALL WIDTH
- 2132mm
- WORKING WIDTH
- 1982mm
- DEPTH
- 1536mm
- HEIGHT
- 1259mm
- WEIGHT
- 484kg
- BRACKETS
- Not included
7'0" XL "MEGA" MEGASCRAPE (MOUNTING TO CONFIRM) — specifications
- CODE
- 69818
- OVERALL WIDTH
- 2284mm
- WORKING WIDTH
- 2134mm
- DEPTH
- 1536mm
- HEIGHT
- 1259mm
- WEIGHT
- 497kg
- BRACKETS
- Not included
8'0" XL "MEGA" MEGASCRAPE (FRONT MOUNTED) — specifications
- CODE
- 69819
- OVERALL WIDTH
- 2588mm
- WORKING WIDTH
- 2438mm
- DEPTH
- 1536mm
- HEIGHT
- 1259mm
- WEIGHT
- 522kg
- BRACKETS
- Not included
Model options and specifications depend on configuration. Please tell us the machine make, model and bracket or linkage type where applicable. Compatibility, delivery arrangements and the final specification must be confirmed before ordering.
