Rolland LSP Semi-Mounted Bale & Flatbed Trailers
Machine Information
Machine Information
- Available to order
- Finance options available
- Part exchange considered
- Delivery available
- Contact us for current lead times
Request a Quote
Request a Quote
Looking for pricing, finance options or additional specifications? Click the Request a Quote button above and our team will be in touch.
Description
Description
PRICE ON APPLICATION
Choose your model and tell us the job it needs to do. We will confirm specification, availability and delivery with your quotation.
Semi-mounted flatbed trailers for bale and agricultural load transport. The current LSP listings below show body lengths and approximate payloads. Confirm your bale dimensions, load and tractor specification with us before ordering.
Compare models | Model specifications | Brochures
Compare the models
Swipe or scroll across the table on smaller screens.
| Model | Length | Width | Capacity | Running gear |
|---|---|---|---|---|
| LSP 7504 | 7500 mm | 2500 mm | Approx. payload: 13 100 kg | Rocker beam |
| LSP 9004 | 9000 mm | 2500 mm | Approx. payload: 20 200 kg | Rocker beam |
| LSP 10004 | 10000 mm | 2500 mm | Approx. payload: 20 000 kg | Rocker beam |
Figures are manufacturer-listed and configuration dependent. Volume is not a weight payload. Body extensions, tyre sizes and selected options can change dimensions and usable capacity. Confirm the final UK specification with your quotation.
Specifications by model
Open a model below to see its published technical details.
LSP 7504 — specifications
| Body length | 7500 mm |
|---|---|
| Body width | 2500 mm |
| Axle / running gear | Rocker beam |
| Brakes | Dual line air or oil |
| Wheels | Various models on the catalogue |
| Bed height | 1165 mm |
| Drawbar | Adjustable or with springs |
| Jack | Hydraulic |
LSP 9004 — specifications
| Body length | 9000 mm |
|---|---|
| Body width | 2500 mm |
| Axle / running gear | Rocker beam |
| Brakes | Dual line air or oil |
| Wheels | Various models on the catalogue |
| Bed height | 1165 mm |
| Drawbar | Adjustable or with springs |
| Jack | Hydraulic |
LSP 10004 — specifications
| Body length | 10000 mm |
|---|---|
| Body width | 2500 mm |
| Axle / running gear | Rocker beam |
| Brakes | Dual line air or oil |
| Wheels | Various models on the catalogue |
| Bed height | 1165 mm |
| Drawbar | Adjustable or with springs |
| Jack | Hydraulic |
Manufacturer brochures
Choose the right specification
Send us the model, your tractor make and model, intended material or load, required options and delivery postcode. We will confirm hitch and braking compatibility, current availability, the final equipment specification and delivery arrangements before an order is agreed.

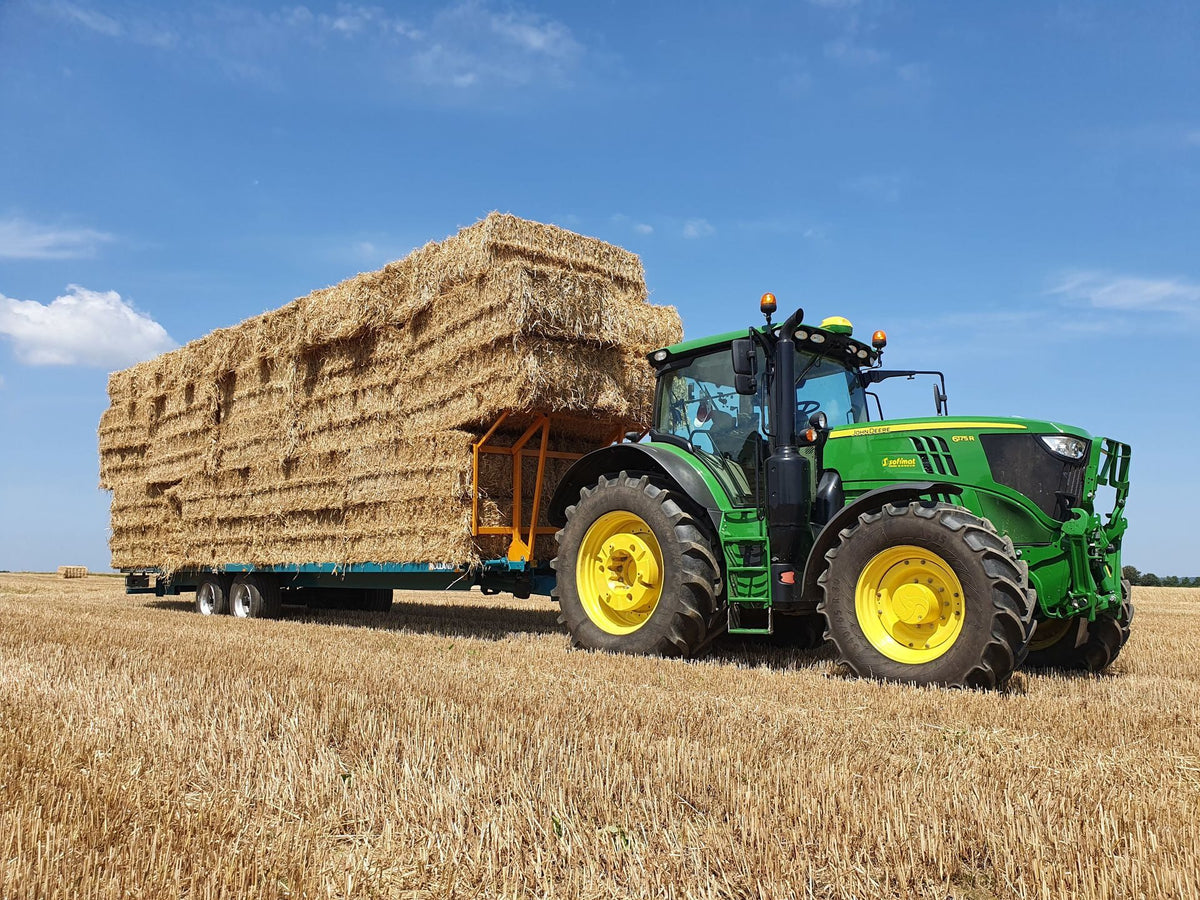

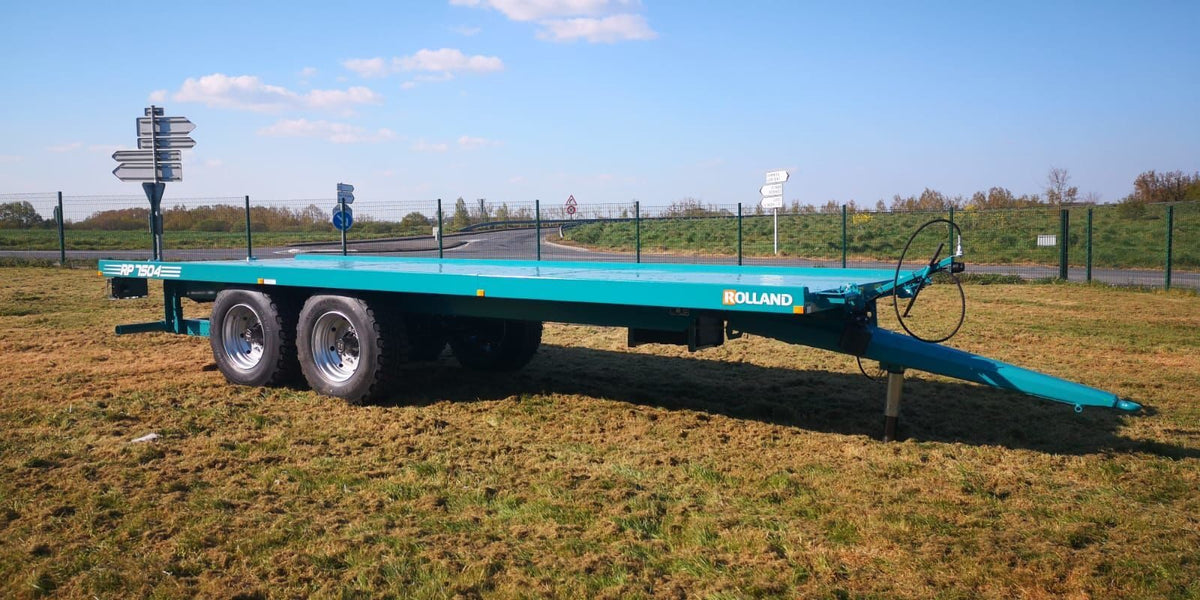

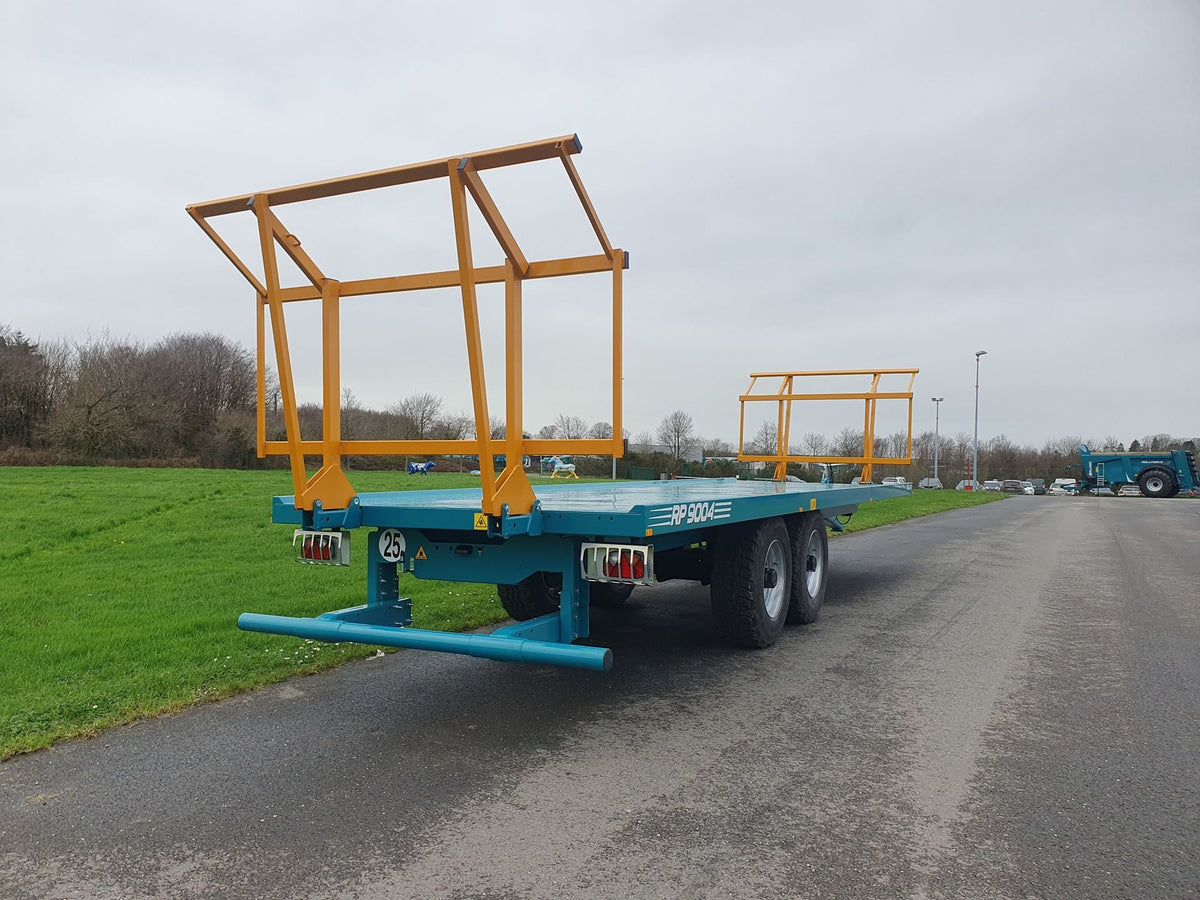

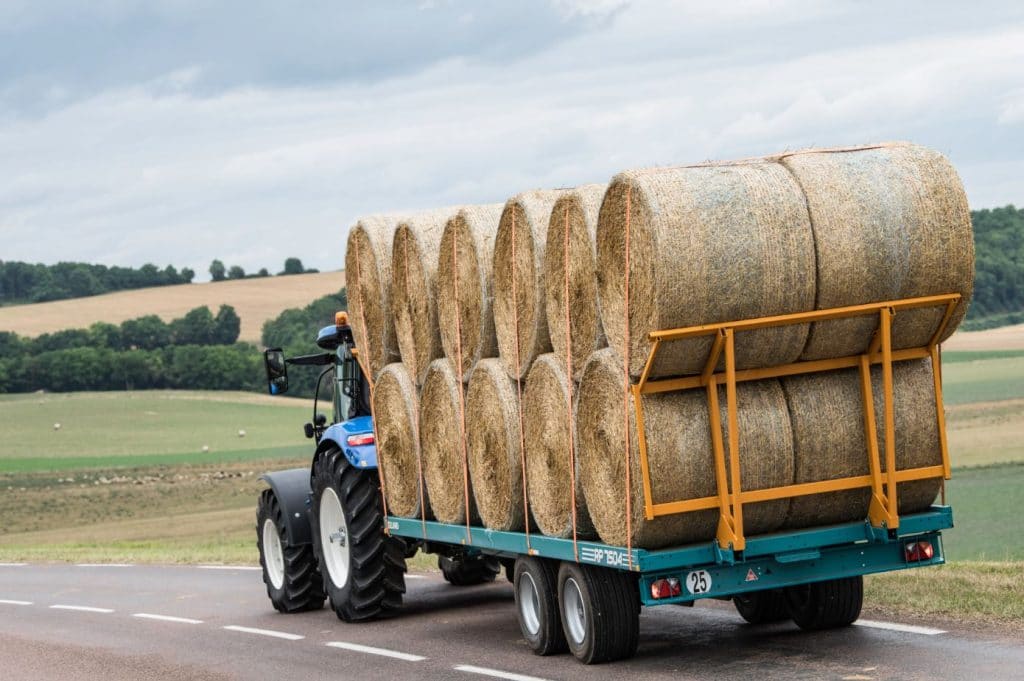

Manufacturer photographs illustrate the range and may show optional equipment. This listing does not indicate that every model is held in stock.
