NIGHTSHIFT 36W LED Far-Reaching Work Light – 12/24V, 3,908 lm, Vertical Mount

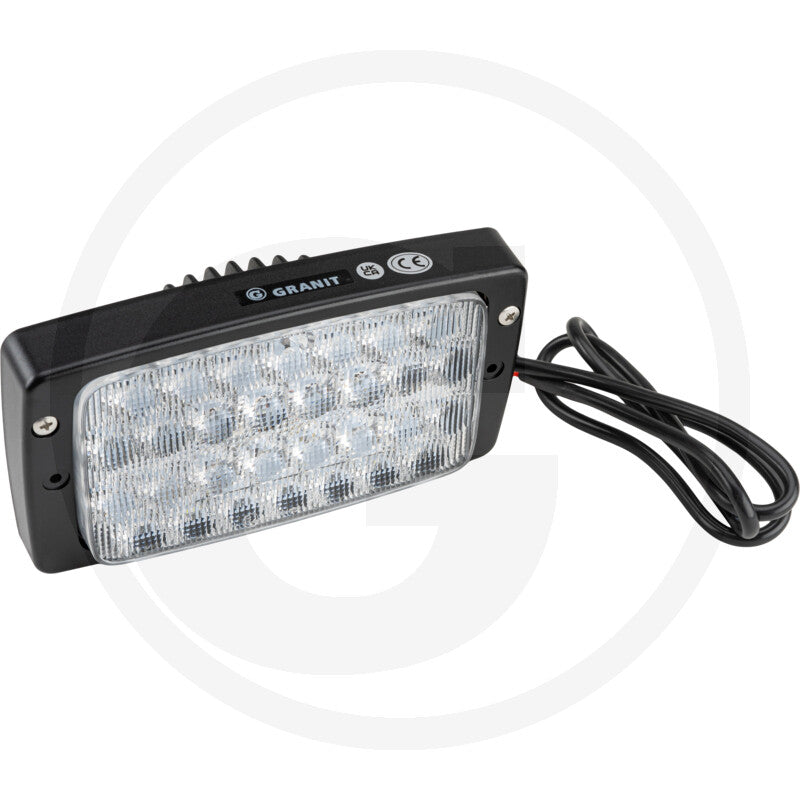

NIGHTSHIFT rectangular LED work light designed to provide far-reaching illumination for agricultural tractors, harvesters and machinery. The 12/24 V lamp uses 30 LEDs and supplies 3,908 lm effective luminous flux (9,900 lm theoretical).

Specifications

• Power: 36 W
• Voltage: 12/24 V (10–30 V operating range)
• Light output: 3,908 lm effective; 9,900 lm theoretical
• Colour temperature: 5,000–6,500 K
• Light function: far-reaching illumination
• Mounting: vertical bracket; 160 mm hole-centre spacing, M4 connections
• Connection: 1 m cable with tinned open ends (red positive, black negative)
• Dimensions: 183 × 102 × 61 mm; light aperture 146 × 85 mm
• Protection: IP67 / IP6K9K; ECE R10; CISPR25 Class 3
• Housing: aluminium; plastic lens; stainless-steel bracket
• Weight: 770 g
• EAN: 4059139386482

Verified machine applications and reference numbers

Case IH — References 84814468, 1-40-172-011, 9837139 and 47107239. Series 20 (525, 527); CF (60, 70, 80); CHX (320, 420, 520, 620); CS (78, 80, 85, 86, 90, 94, 95, 100, 105, 110, 120, 130, 150); CT (5050, 5060, 5070, 5080); CVX (120, 130, 150, 170); SP (2500, 3000).

Fendt — References G294900110010, G312900113020, G260900020070, G312900113010 and X830160101010. Farmer 200 (240 S, 250 S/V, 260 P/S/V, 270 P/V, 275 S/V, 280 P/S/V); Farmer 300 (304–312); Farmer 400 (409–412); Favorit 500 (509, 510, 511, 512, 514, 515); Favorit 700 (711, 712, 714, 716); Favorit 800 (816, 818, 822, 824); Favorit 900 (916, 918, 920, 924, 926); Fendt 200 (206–211, supplier-listed S, F, P, V and V+F variants as applicable); Fendt 300 (309–313); Fendt 400 (411–415); Fendt 700 (711, 712, 714, 716, 718); Fendt 800 (815, 817, 818, 820); Fendt 900 (916, 918, 920, 924, 926, 930); GT (365, 370, 380, 390, 395); Xylon (520, 522, 524).

JCB — 3CX Super Precision Control (Dieselmax 68 kW, serial range 0960000–1709999) and 4CX Precision Control (Dieselmax 74 kW, serial range 0960000–1709999).

Laverda — Reference 9837139; AL 519, L 411, L 413, L 416 and L 516.

Massey Ferguson — Reference 3713137M1; 4200 Series (4225, 4235, 4240, 4245, 4255, 4260, 4265, 4270); 4300 Series (4325, 4335, 4345, 4355, 4360, 4365, 4370); 6100 Series (6110, 6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190); 6200 Series (6235, 6245, 6255, 6260, 6265, 6270, 6280, 6290); 8100 Series (8110, 8120, 8130, 8140, 8150, 8160, 8170, 8180); 8200 Series (8210, 8220, 8240, 8250, 8260, 8260 LST, 8270, 8280).

New Holland — Reference 9837139; 9000 Series (9630, 9640, 9645); AL (AL59); FX (FX28, FX30, FX38, FX40, FX48, FX50, FX58, FX60, FX300, FX375, FX450); TC (TC52, TC54, TC56); TF (TF76, TF78); TX (TX62, TX63, TX64, TX65, TX66, TX67, TX68).

SAME — Reference 04434891; Diamond 230 and Diamond 260.

Steyr — Reference 1-40-172-011; 9000 Series (9078, 9086, 9094); 9000 MT (9080 MT, 9085 MT, 9090 MT, 9095 MT, 9100 MT, 9105 MT); 9100 Series (9105, 9115, 9125, 9145); M 9000 Series (9080 M, 9090 M, 9100 M, M 9078, M 9083, M 9086).

Manufacturer references above help identify compatible replacement applications. Check the original lamp shape, mounting position and connector when replacing a unit.
