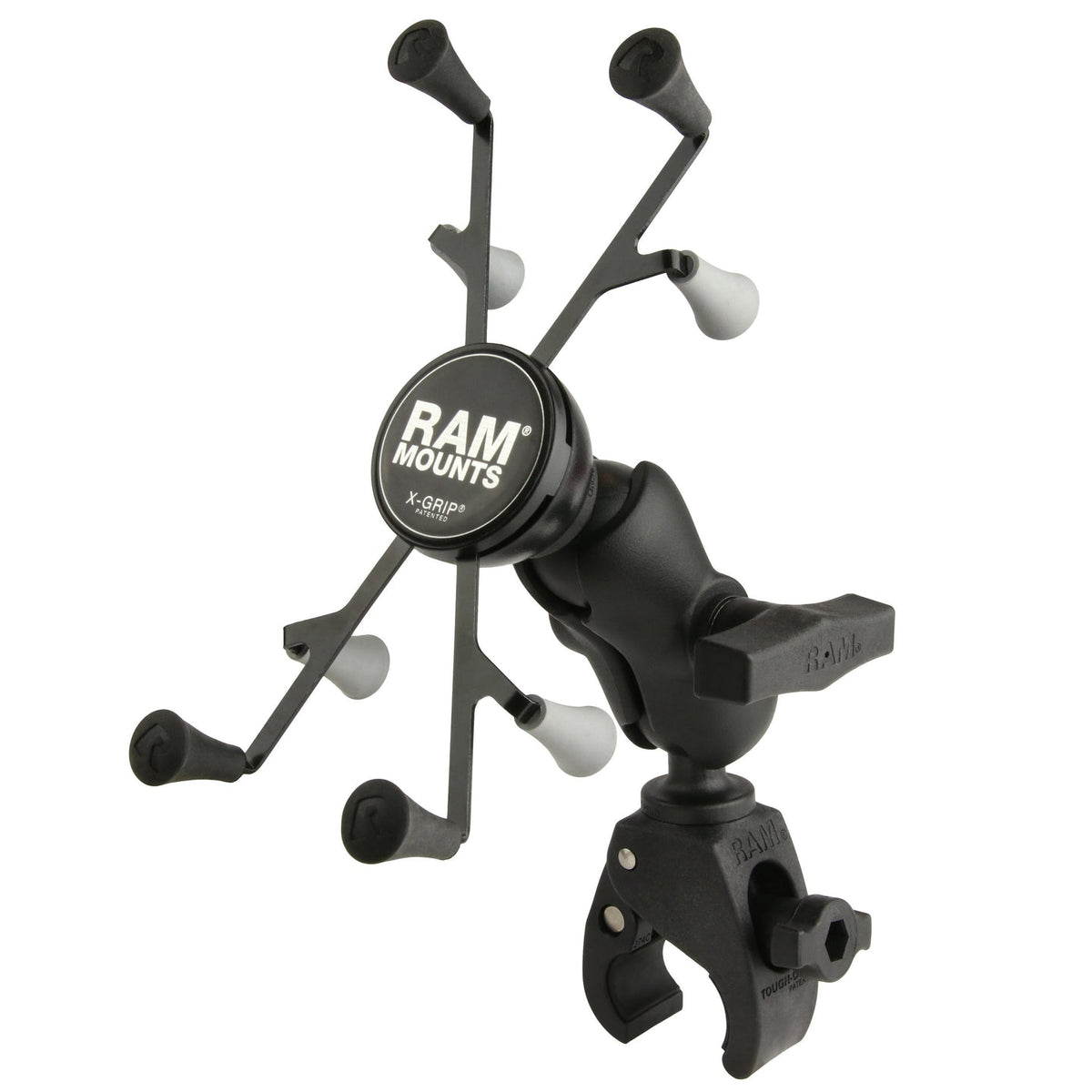

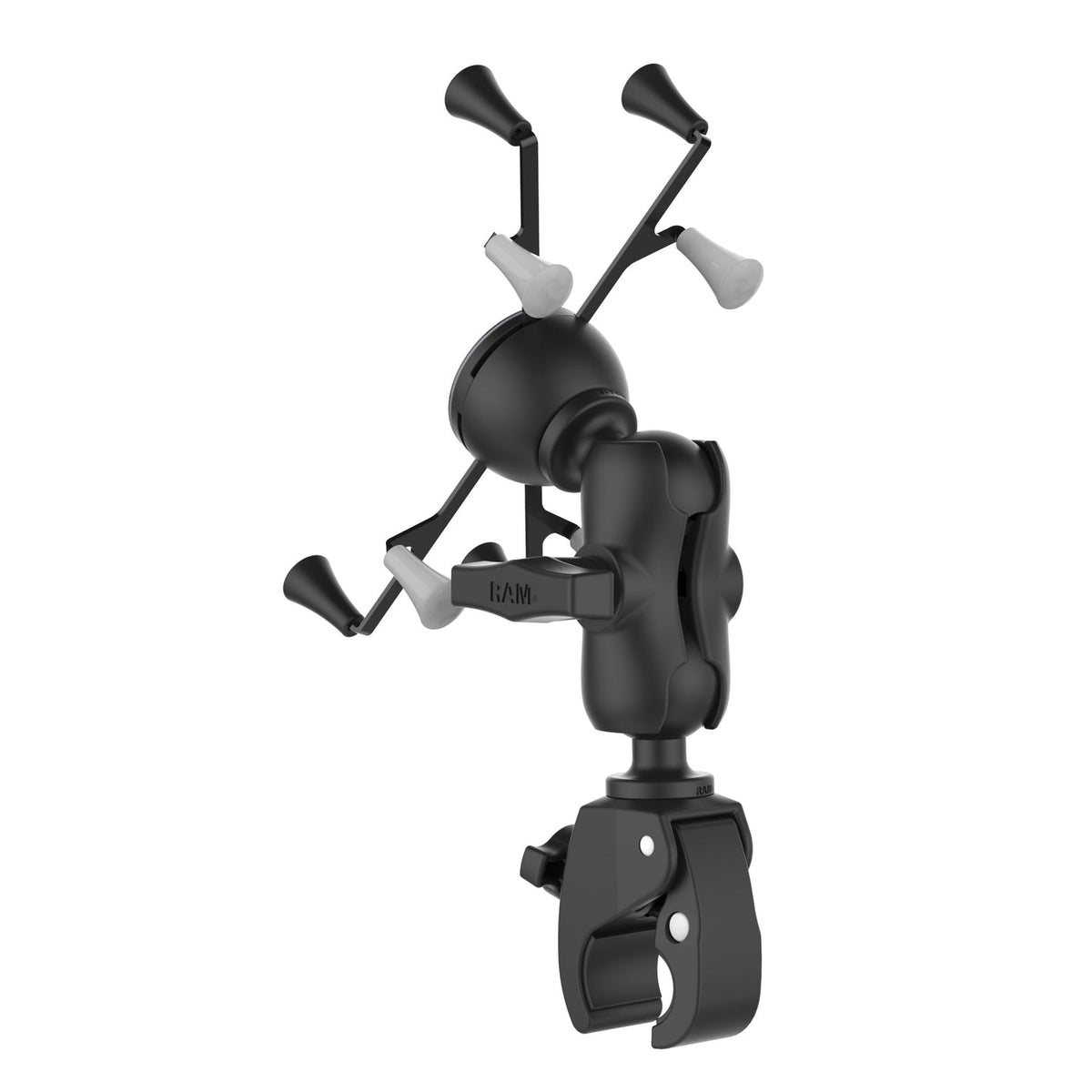

RAM X-Grip 7–8 Inch Tablet Mount Kit with Tough-Claw – C Size Short Arm

A complete adjustable mount for a compatible 7–8 inch tablet, with a spring-loaded X-Grip holder, short C Size arm and tool-free small Tough-Claw base. Suitable for a cab rail or bar that meets the clamp dimensions below.

Check the fit

• Tablet width: 63.5–146.1 mm (2.5–5.75 inches).
• Maximum tablet depth: 22.2 mm (0.875 inches).
• Round rail diameter: 15.9–29 mm (0.625–1.14 inches).

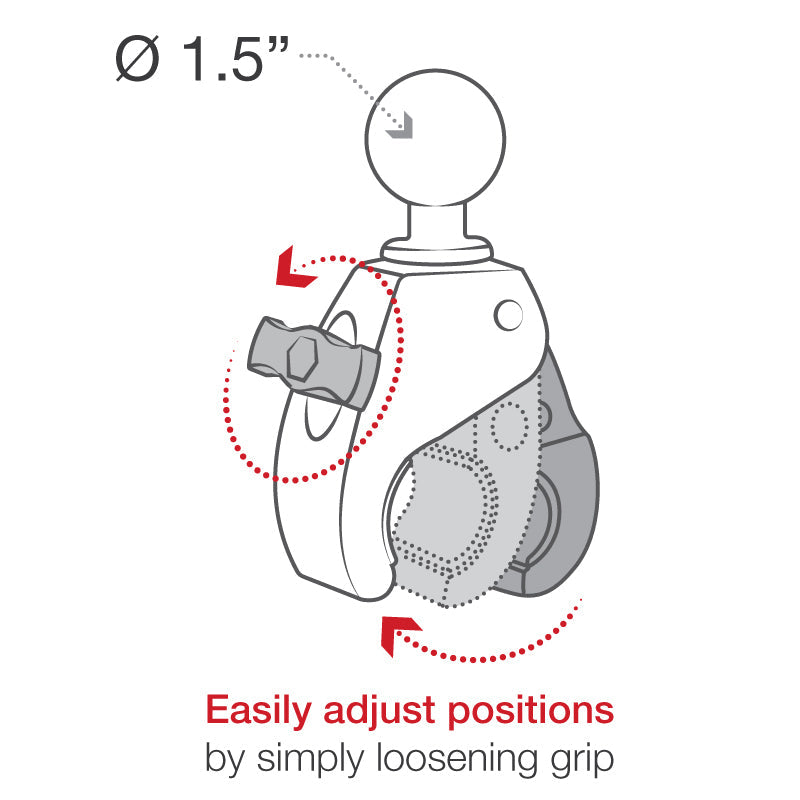

• C Size 38.1 mm (1.5-inch) ball system.
• Socket-to-socket arm length: 63.5 mm (2.5 inches).

Screen size alone does not confirm compatibility: measure the tablet including its case and check the rail before ordering. This is not a model-specific tractor fitting. Tablet shown in photographs is not included.

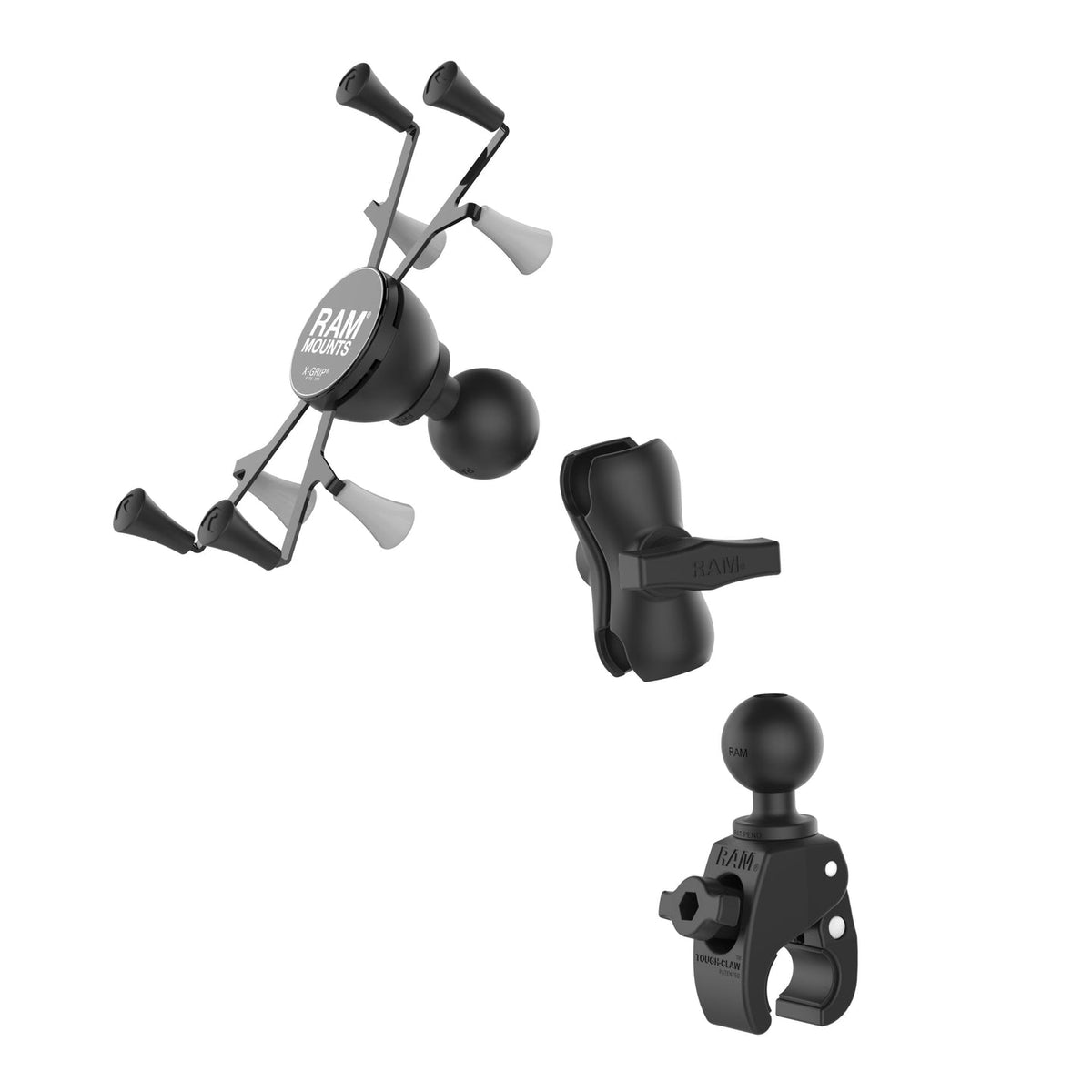

What is included

• RAM-HOL-UN8BCU X-Grip tablet holder with C Size ball.
• RAM-201U-B short double-socket arm.
• RAP-400U small Tough-Claw clamp base.
• Optional device tether and glue tube for rubber caps.

Marine-grade aluminium and high-strength composite construction. Kit weight: 0.596 kg. RAM load guide: 1.81 kg for standard use or 1.36 kg for heavy-duty use; the mounting arrangement and operating conditions must be considered. The supplied tether is recommended for open-cockpit applications. Charger not included.

Manufacturer part number: RAM-400-B-UN8U.
