14 V 35 A Compact Alternator – 56.0 mm Flange / 8.3 mm Mount
14 V 35 A Compact Alternator – 56.0 mm Flange / 8.3 mm Mount is backordered and will ship as soon as it is back in stock.
Description
Description

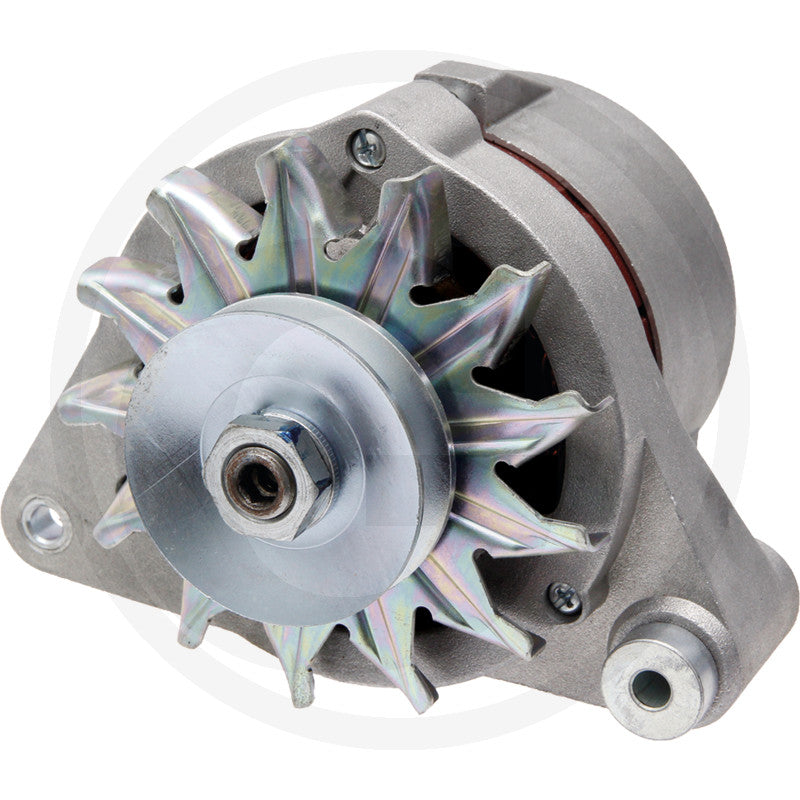

Compact 14 V, 35 A alternator with pulley and W connection for selected agricultural tractors, compact tractors and machinery.
Technical details
- Nominal voltage: 14 V
- Charging current: 35 A
- Mounting L / d / R: 56.0 / 8.3 / 86.0 mm
- Flange size: 56.0 mm
- Belt tension hole Ø / R: 8.3 / 86.0 mm
- Form: B
- Installation angle: 60°
- Direction of rotation: clockwise
- Pulley diameter: 72.0 mm
- Pulley spacing: 23.5 mm
- Belt width: 9.7 mm
- Mounting hole Ø / R: 8.3 / 86.0 mm
- W connection
- Weight: 3.94 kg
Confirmed applications
Compatible supplier fitment includes selected Antonio Carraro 300, 400, 500, 600, 700 and 9000 series; Case IH tractors and machinery including D-155, D-179, D-239, D-246, D-268, D-310, 431, 640, 644, 743, 744, 745, 844, 845, 856 XL, 946, 955, 956, 1046, 1055 and 1056 series; Deutz-Fahr 05, 06, 07, DX, Intrac and M-series; Fendt Farmer 1–4 and GT 231; Goldoni 1055, 3050 and Star 3070; Holder A30–A60, B40–B51 and P60; Itma 3.40500600 and Sirio 4RM; John Deere 20, 30, 35, 40, 50, 900, 6000 and other listed series; Kramer 32–86 series; Renault Super 1050–2000; Schlüter FL912; and Still R-series applications.
OEM and reference numbers
Common references: 11201096K1303, 11.201.096 / K1303, AGN1096E, 110 641
Case IH: 130100090739, 130100090744, 1532068C1, 1532068C2, 3138942R91, 3144924R91, 3218239R91, 3218544R91, 84535280, B506371
Deutz-Fahr: 01177481
John Deere: AZ23575, AL36100, AL35998, AL207585, AL81436, AR62401, AL23434, AL23850, AZ24489, AZ24485, AL30420, AL28516
Renault: 0511976
Check the original alternator, pulley, belt dimensions, mounting points, rotation and electrical connection before ordering.
