14 V 65 A Compact Alternator – 56.0 mm Flange / 8.5 mm Mount
14 V 65 A Compact Alternator – 56.0 mm Flange / 8.5 mm Mount is backordered and will ship as soon as it is back in stock.
Description
Description

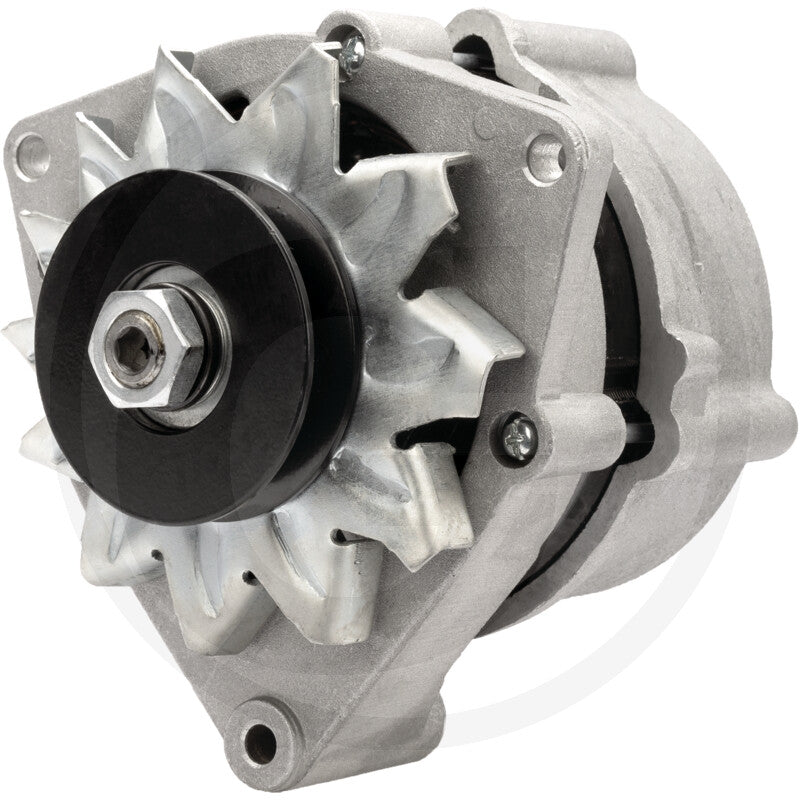

14 V 65 A Compact Alternator
Replacement alternator for agricultural tractors, combines, construction machinery and commercial equipment where the supplied mounting dimensions and electrical specification match.
Specifications
- Voltage: 14 V
- Charging current: 65 A
- Mounting L / hole diameter / R: 56.0 / 8.5 / 85.0 mm
- Flange size: 56.0 mm
- Belt tension hole: 8.5 mm / 80.0 mm radius
- Pulley diameter: 73.0 mm
- Pulley spacing: 22.5 mm
- Belt width: 9.7 mm
- Form: B
- Rotation: clockwise
- Installation angle: ±60°
- Connection: W connection
- Weight: 5.64 kg
Confirmed applications
Granit fitment data covers Case IH, Claas, Deutz-Fahr, Eicher, Fendt, Mercedes-Benz, New Holland, O&K, Schlüter, Steyr and Zetor applications, including Case IH B, C, CS and D series, New Holland and Steyr ranges, Fendt 200, Favorit and GT applications, Deutz-Fahr 06, AgroCompact, AgroPrima, AgroStar, Agrosun, AgroXtra, DX, Farmliner, M, 500, 600, 2000 and 3000 series, plus Claas Dominator, Mercator and related machinery.
OEM/reference numbers
84535280; 130100090739; 130100090744; 1532068C1; 1532068C2; 3138942R91; 3144924R91; 3218239R91; 3218544R91; 01171638; G345900011010; X830060022000; G198902011010.
Always compare the vehicle application, mounting dimensions, pulley arrangement and electrical connections before ordering.
