40W LED Flush-Mount Work Light for John Deere 8R/8RT, 7020–9030 & Case IH AF

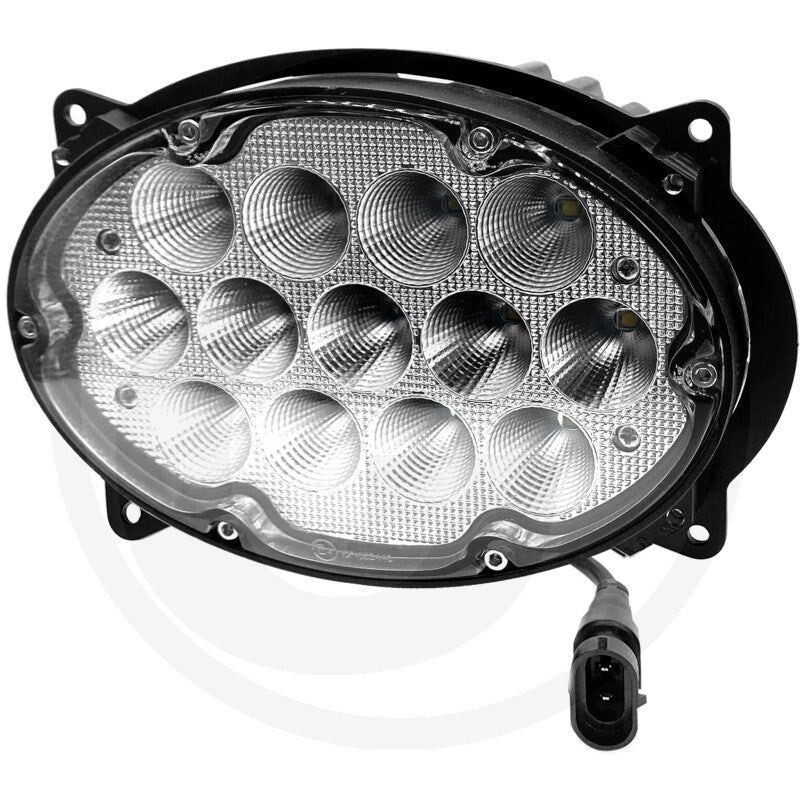

Oval LED floodlight designed for specified John Deere and Case IH machinery. This flush-mount lamp produces 3,800 lm effective luminous flux and uses a 9006 socket connection. Check the existing aperture, socket and electrical system before ordering.

Machine compatibility and reference numbers

John Deere: RE260102, RE173600, RE181964. Listed for 8R/8RT models 8225R, 8245R, 8270R, 8295R, 8295RT, 8310RT, 8320R, 8320RT, 8335RT, 8345R, 8345RT and 8360RT; 7020 series 7720, 7820 and 7920; 7030/7030PR series 7630, 7730, 7830 and 7930; 8020/8020T series 8120, 8120T, 8220, 8220T, 8320, 8320T, 8420, 8420T, 8520 and 8520T; 8030/8030T series 8130, 8230, 8230T, 8330, 8330T, 8430, 8430T and 8530; 9020/9020T series 9120, 9220, 9320, 9320T, 9420, 9420T, 9520, 9520T, 9620 and 9620T; and 9030/9030T series 9230, 9330, 9430, 9430T, 9530, 9530T, 9630 and 9630T.

Case IH: 87106354, 87106352. Listed for Axial-Flow (AF) models 2377, 2388, 2577, 2588, 5088, 5130, 5140, 6088, 6130, 6140, 7010, 7088, 7120, 7130, 7140, 7230, 7240, 8010, 8120, 8230, 8240, 9010, 9120, 9230 and 9240, plus AFX 8010. Certain 5130, 6130, 7130, 7230, 8230 and 9230 applications are year/version-specific; use the machine’s original reference number to confirm.

Specifications

• LED floodlight, oval flush-mount design
• Power: 40W (65W power consumption as specified)
• Effective luminous flux: 3,800 lm; theoretical: 5,200 lm
• 12/24V nominal; 10–30V operating range
• Colour temperature: 6,000K

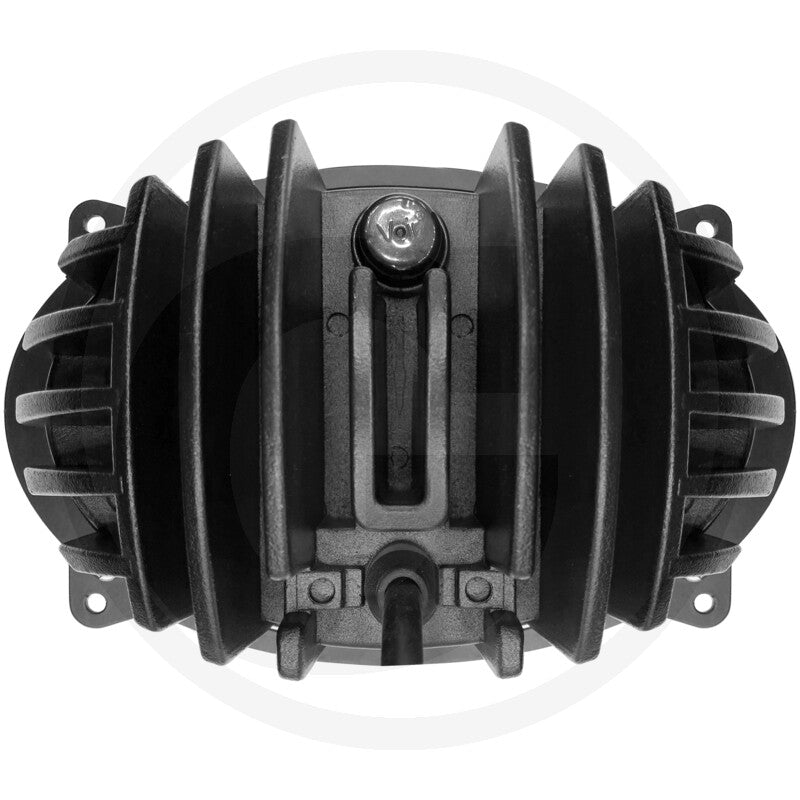

• 9006 socket; 120mm cable
• Fixing: M4 × 15
• Aluminium housing; IP69K
• ECE R10, CE, UKCA, RoHS and REACH markings
• Weight: 1.10kg
