Exhaust Pipe for Massey Ferguson Tractors 1696603M
Exhaust Pipe for Massey Ferguson Tractors 1696603M is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free UK standard delivery on orders of £100 or more after discounts, including mixed orders. Express delivery is chargeable.
For orders below £100, delivery charges depend on the items in your basket. Your available delivery options and total postage are shown at checkout.
Availability labels describe when an item is ready for dispatch; they do not guarantee next-day arrival. For timings and label meanings, see our delivery information.
If your order is urgent, call 01704 607162 before ordering.
Exhaust Pipe for Massey Ferguson Tractors 1696603M
Description
Description
Replacement exhaust pipe suitable for a wide range of Massey Ferguson tractors, including selected 300, 3000, 3100, 4200, 4300, 5400, 6100, 6200 and 6400 Series models.

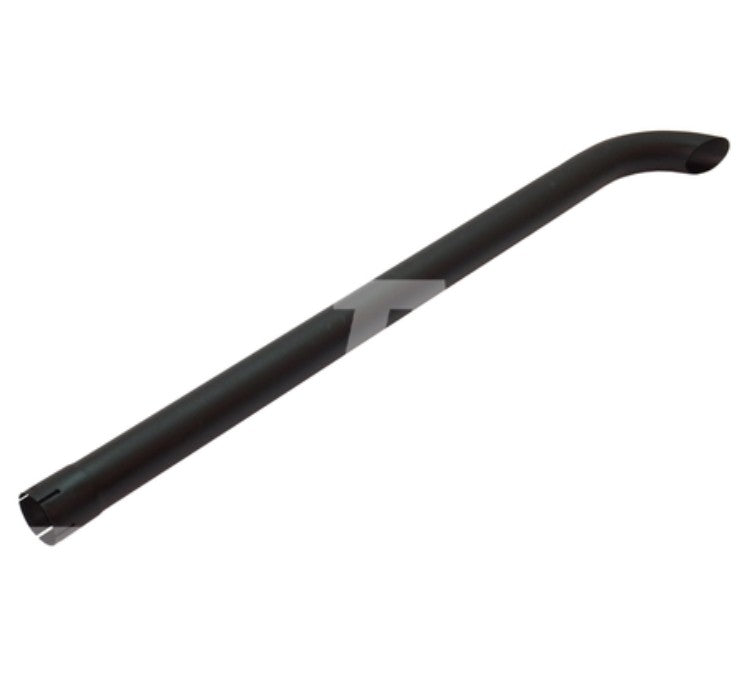

Manufactured by TotalSource, this exhaust pipe features a black finish, curved upper outlet and straight lower mounting section.
Designed as an aftermarket replacement for Massey Ferguson OEM part number 1696603M3 and associated references.
Features
-
Replacement exhaust pipe for Massey Ferguson tractors
-
Curved upper exhaust outlet
-
Straight lower mounting section
-
Black finish
-
Single-bend design
-
No mounting flange
Specifications
| Specification | Details |
|---|---|
| Brand | TotalSource |
| Product Type | Exhaust Pipe |
| Overall Length | 1132mm |
| Number of Bends | 1 |
| Smallest Outside Diameter | 63mm |
| Largest Outside Diameter | 68mm |
| Smallest Inside Diameter | 61mm |
| Largest Inside Diameter | 66mm |
| Short Section Length | 65mm |
| Long Section Length | 1080mm |
| Flange | None |
| Weight | 2.6kg |
| Colour | Black |
Massey Ferguson Model Compatibility
The following tractor models are listed in aftermarket catalogues against this exhaust's OEM reference family. Fitment is dependent on the original exhaust configuration and should be checked before ordering.
300 Series
390, 390T, 396, 398, 399
3000 Series
3050, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095
3100 Series
3115, 3120
4200 Series
4215, 4220, 4225, 4235, 4240, 4245, 4255, 4260, 4265, 4270
4300 Series
4315, 4320, 4325, 4335, 4345, 4355, 4360, 4365, 4370
5400 Series
5425, 5435, 5445, 5455
6100 Series
6120, 6130, 6140, 6150, 6160, 6170, 6180
6200 Series
6235, 6245, 6255, 6260
6400 Series
6445, 6455
OEM Part Numbers & Cross References
Massey Ferguson OEM references
-
1696603M1
-
1696603M2
-
1696603M3
-
3383014M1
-
3383014M2
-
3383014M4
-
3383014M6
-
3383014M7
Aftermarket references
-
TVH / TotalSource: 20199277
-
Sparex: S.42771
-
Agriline: 3224
Important Fitment Information
Different exhaust configurations were fitted to Massey Ferguson tractors, including variations within the same tractor series.
This product is intended for tractors equipped with a compatible conventional vertical exhaust arrangement and is not suitable for the cab corner-post exhaust system.
Aftermarket versions may differ in overall length and connection dimensions. This TotalSource exhaust measures 1132mm overall, with a 63mm outside diameter at the smaller tube section.
Please compare your original exhaust pipe, OEM part number and dimensions before ordering.
