GRANIT | SKU: ASP-GR-28W-2392-01

GRANIT 28W Round LED Work Light – 12/24V, 2,392 lm

Name: GRANIT 28W Round LED Work Light – 12/24V, 2,392 lm
Brand: GRANIT
SKU: ASP-GR-28W-2392-01
Price: 59.99 GBP
Availability: InStock

£59.99 Inc VAT

Available Next Working Day

Tax included Shipping calculated at checkout. Ex VAT, shipping calculated at checkout.

Delivery and Shipping

Free UK standard delivery on orders of £100 or more after discounts, including mixed orders. Express delivery is chargeable.

For orders below £100, delivery charges depend on the items in your basket. Your available delivery options and total postage are shown at checkout.

Availability labels describe when an item is ready for dispatch; they do not guarantee next-day arrival. For timings and label meanings, see our delivery information.

If your order is urgent, call 01704 607162 before ordering.

Description

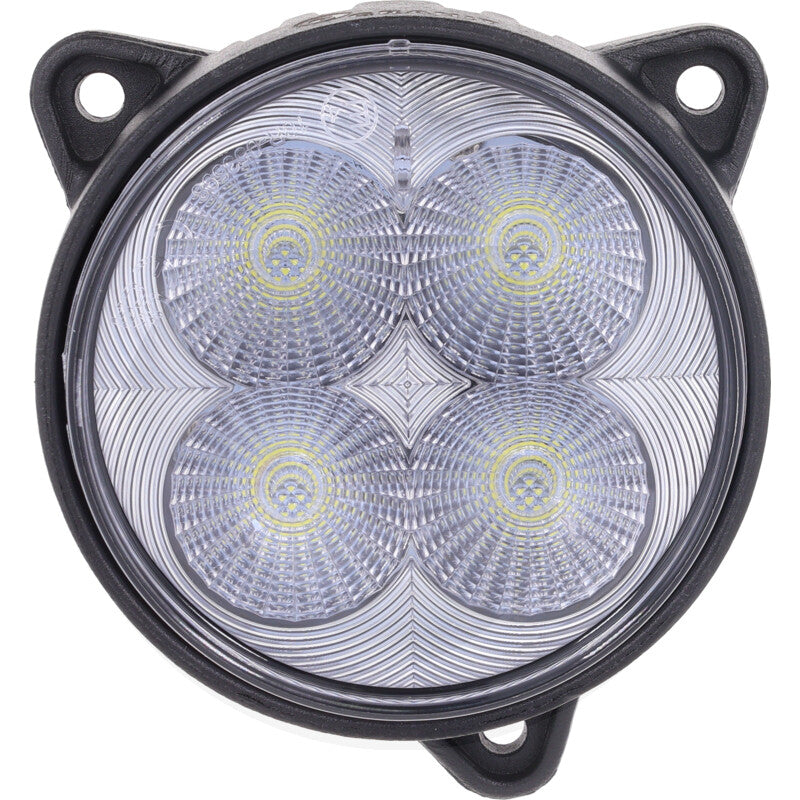

Round, flush-mounted GRANIT LED work light for close-range illumination on agricultural tractors and machinery. The 28W lamp provides 2,392 lm effective light output (4,000 lm theoretical) from four LEDs, with an aluminium housing and plastic lens.

12/24V nominal; 10–30V operating range
28W; 2,392 lm effective output
Round, flush mounting; 84 mm diameter x 72 mm deep
IP6K9K protection; ECE R10; CISPR25 Class 4 EMC
Colour temperature 5,000–6,500K; operating temperature −40°C to +50°C
Weight: 390g

Confirmed machine applications and OE references

Case IH: 87539115, 87328621, 87455677, 87455676, 87308895, 84530388. Farmall 120C; Magnum 225, 250, 255, 280, 310, 335 and the listed Tier 4 versions; MX 215; Puma 150, 165, 170, 180, 185, 195, 200, 210, 215, 220 and 240, with specified CVX/Stage V variants; Quadtrac 370, 450, 500, 550 and 600; Quantum 80, 90, 100 and 110; Steiger 350, 370, 400, 420, 450, 470, 500, 550 and 600 series as listed.
Challenger: 526701D1, 519438D1. MT745C/D, MT755C/D, MT765C/D, MT755E, MT765E, MT775E; MT835C, MT845C/E, MT855C/E, MT865C/E and MT875C/E.
Fendt: G334900111020. Fendt 207, 208, 209, 210 and 211 (specified types in the 200 series).
John Deere: AL209455. Listed 6M models: 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M and 6195M; listed 6R models: 6105R, 6115R, 6125R, 6130R, 6140R, 6150R, 6170R, 6190R and 6210R.
New Holland: 87539115, 84530388, 47376469. C227, C232, C238; CR7.90, CR8.80, CR8.90, CR9.80, CR9.90, CR10.90; CX5.80, CX5.90, CX6.80, CX6.90, CX7.90, CX8.70, CX8.80, CX8.85, CX8.90; T5.90, T5.100, T5.110, T5.120; TC4.90, TC5.70, TC5.80, TC5.90, TC5060, TC5070, TC5080; TG210, TG230, TG255 and TG285.
Steyr: 87539115. CVT 6170, 6185, 6205, 6215 and 6230 (from 12/2010).

Compare the connector, mounting position and applicable OE reference with the existing lamp before ordering. The references above identify the listed machine applications.
