GRANIT 40W LED Main Headlight 36106213 - Multi-Make H4
Description
Description

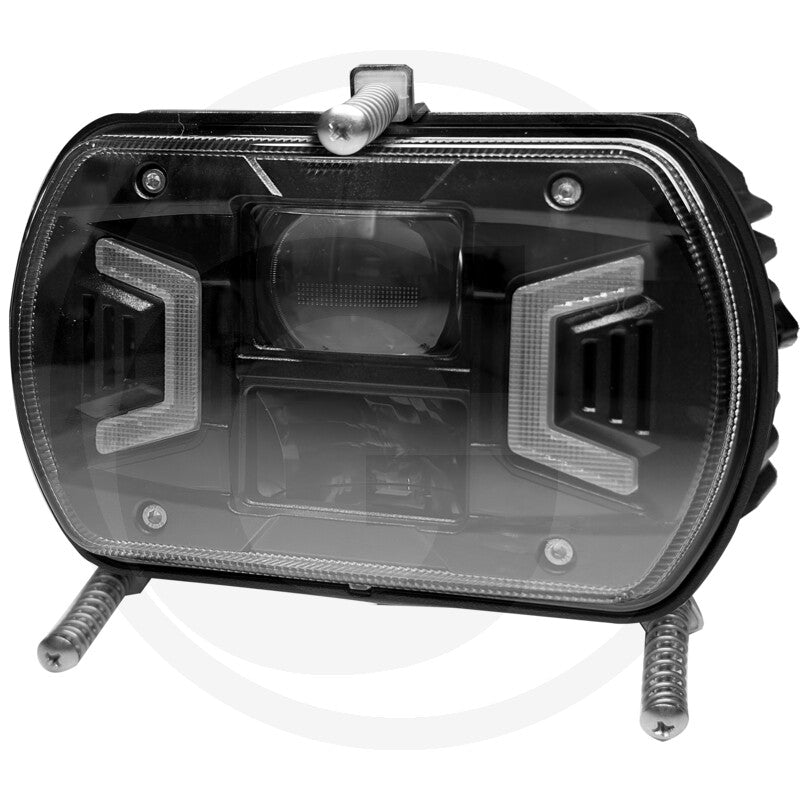

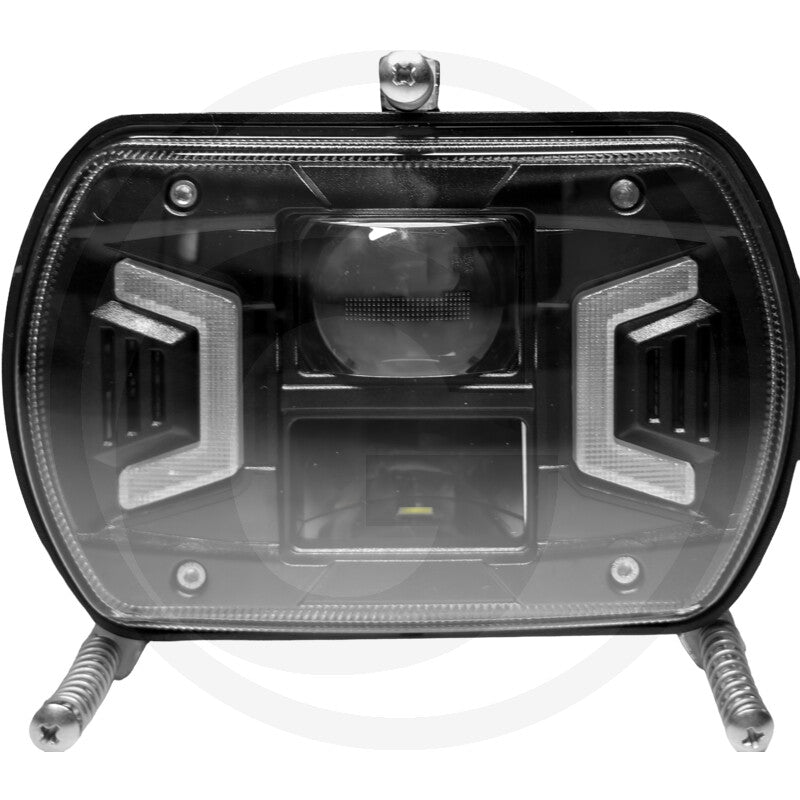

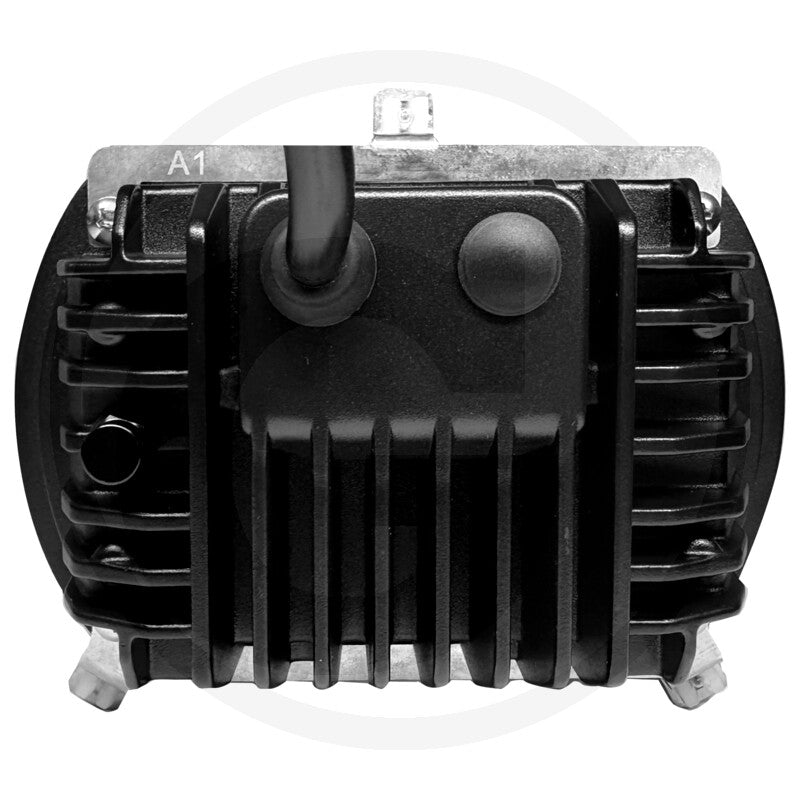

GRANIT 40 W LED main headlight with high beam, dipped beam and position-light functions. Suitable for fitment across multiple agricultural brands, including Case IH, Deutz-Fahr, Fiat, Ford, Hürlimann, Lamborghini, Massey Ferguson, New Holland and SAME.
Vehicle fitment
Suitable for the listed manufacturers. Suitable for Case IH 21 series applications including 2120, 2130, 2140 and 2150 / Pro variants. Verify the existing lamp, OE reference and production period for every machine before ordering.
Specifications
- 12 / 24 V (10–30 V), 40 W; H4 wired connection
- High beam, dipped beam and position light
- 155 × 102 × 80.5 mm; 894 g; black aluminium housing with polycarbonate material; 100 mm cable

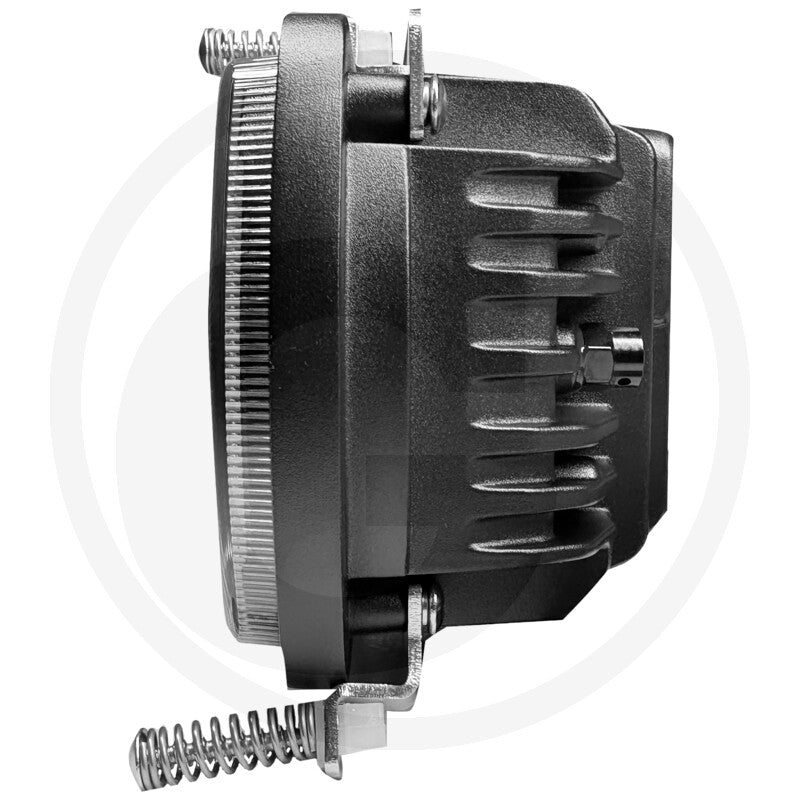

- Oval, flush-mount design; installation height 123 mm
- IP69K; 6,000 K; operating temperature −40 to +80 °C
- Theoretical/effective output: 2,000/1,400 lm dipped beam; 4,500/3,000 lm high beam
- Current: high beam 3.33 A at 12 V / 1.66 A at 24 V; dipped beam 1.66 A at 12 V / 0.83 A at 24 V
- ECE R10.06, R148 and R149; CE; CISPR 25 Class 3
