GRANIT Rectangular LED Main Headlight 12264576 - 12/24V H4

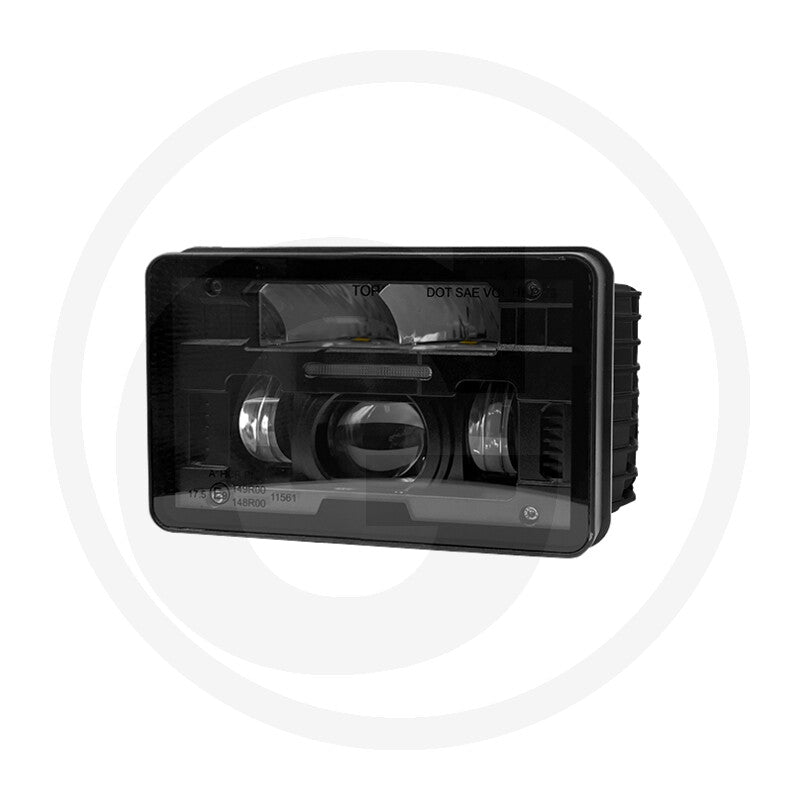

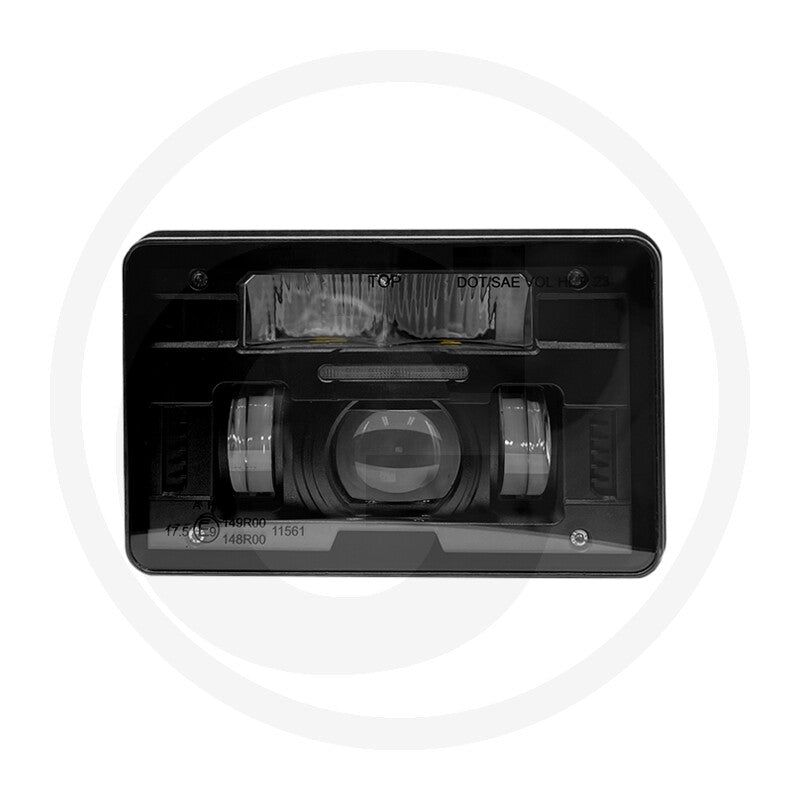

GRANIT rectangular LED main headlight with high beam, dipped beam and position-light functions. This is a road-light unit, not a work light.

Functions, installation and approvals

• 12 / 24 V (10–30 V), 40 W; H4 plug connection
• High beam, dipped beam and position light; 9 LEDs
• 168 × 107 × 81.5 mm; 1.29 kg; black aluminium housing

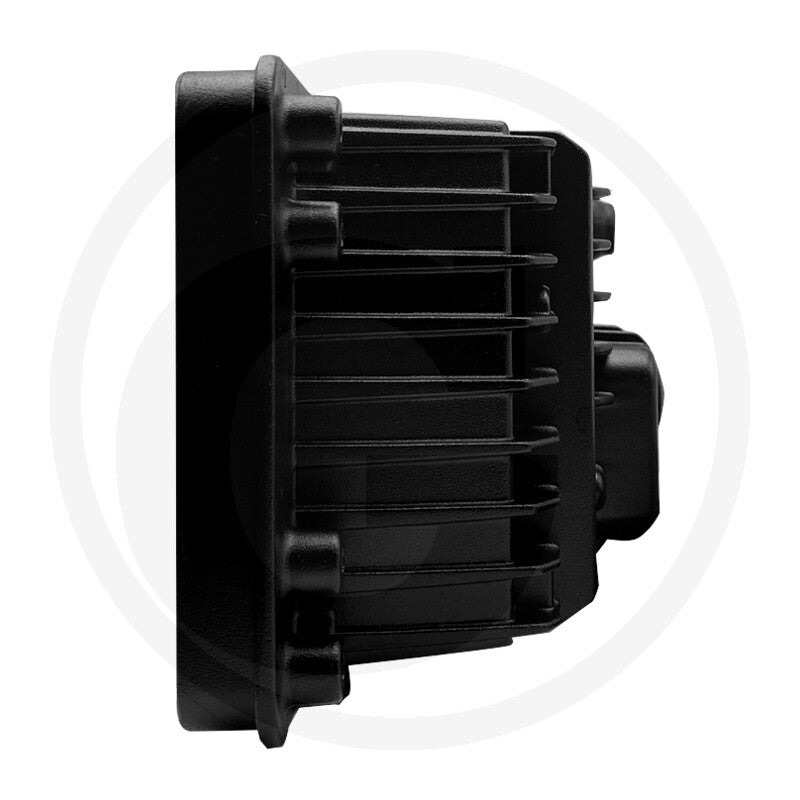

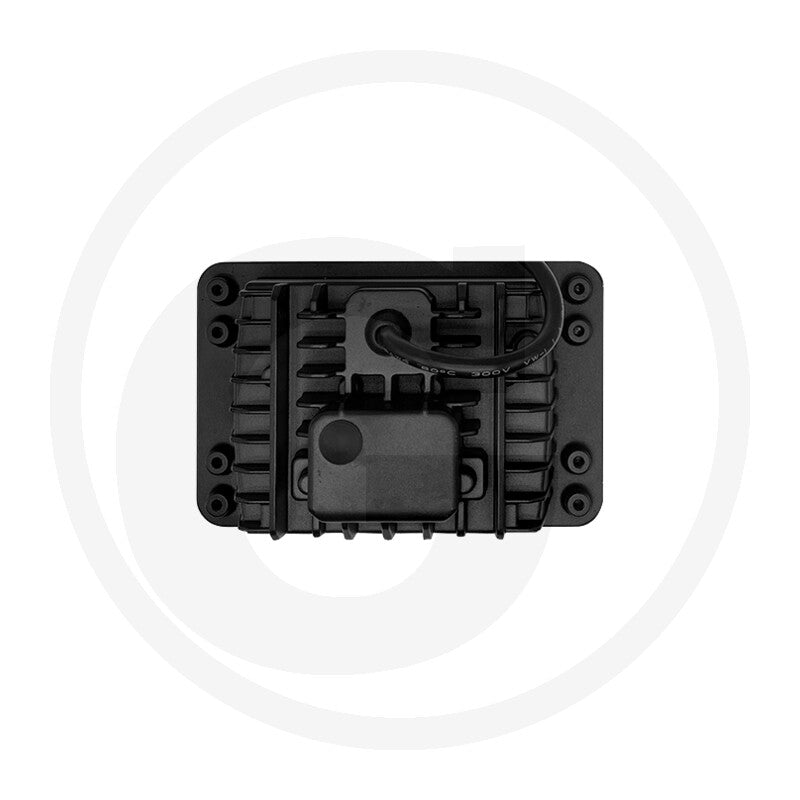

• Flush mounting; three different mounts supplied; 180 mm cable
• IP69K; 6,000 K; operating temperature −40 to +50 °C
• Current: high/dipped 3.35 A / 1.83 A at 12 V; 1.66 A / 0.92 A at 24 V. Position light: 0.09 A at 12 V / 0.04 A at 24 V
• ECE R148, ECE R149, ECE R10, CE, UKCA, REACH, ECE Road Legal, DOT and SAE; CISPR 25 Class 3

Vehicle fitment

Suitable for New Holland, Case IH, Ford, Massey Ferguson, Steyr, Fiat and John Deere. It is not exclusively a New Holland item.

• New Holland: 1000, 2000, 9000, AL, C, CL, CR, CS, CX, FR, FX, LM, LX, T6, T7, T9, T5000, T7000, T7500 and T800 series.
• New Holland T7: applications include T7.230, T7.245 and T7.260 from 2014 onward.
• John Deere: 5M, 5R/5RN, 6000, 6000SE, 6005, 6010, 6010SE, 6015, 6020, 6020SE, 6025, 6030/6030PR, 6050, 7000 and 7010 series.
• Case IH: 21, 32, 42, 85, 94, 95, 200, CS and CX series.
• Massey Ferguson: 200, 300, 203, 3000, 3100, 3600, 4200, 4300, 5000, 6100, 6200, 8200 and 9000 series.

Important: Check the original lamp, OE reference and exact production period before ordering.
