John Deere 20W Rectangular LED Work Light – 12/24V, 1,900 lm
John Deere 20W Rectangular LED Work Light – 12/24V, 1,900 lm is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free UK standard delivery on orders of £100 or more after discounts, including mixed orders. Express delivery is chargeable.
For orders below £100, delivery charges depend on the items in your basket. Your available delivery options and total postage are shown at checkout.
Availability labels describe when an item is ready for dispatch; they do not guarantee next-day arrival. For timings and label meanings, see our delivery information.
If your order is urgent, call 01704 607162 before ordering.
John Deere 20W Rectangular LED Work Light – 12/24V, 1,900 lm
John Deere 20W Rectangular LED Work Light – 12/24V, 1,900 lm is backordered and will ship as soon as it is back in stock.
Description
Description

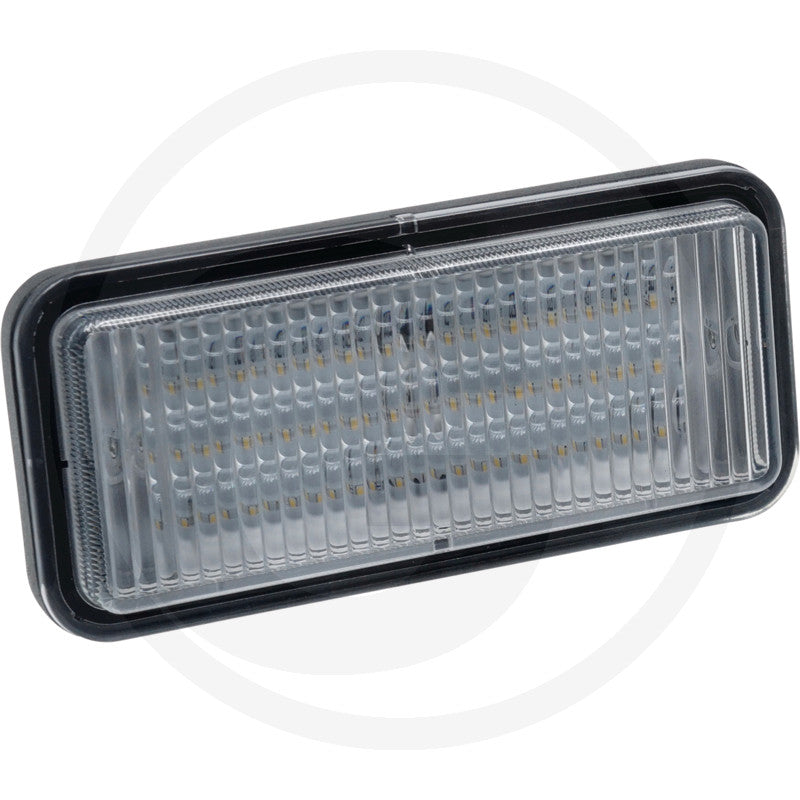

20W LED work light for the John Deere models listed below, replacing the listed R161288 reference. It provides far-reaching illumination and operates on compatible 12V or 24V systems. The rectangular lamp has a vertical mounting position and open cable ends; compare the mounting, wiring and dimensions with your existing light before ordering.
John Deere reference
R161288
Compatible John Deere models
- 40 Series: 4640, 4840
- 50 Series: 4050, 4250, 4450, 4650, 4850
- 55 Series: 4055, 4255, 4455, 4555, 4755, 4955
- 60 Series: 4560, 4760, 4960
- 6000/6000SE Series: 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900
- 6010/6010SE Series: 6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910, 6910S
- 7000 Series: 7200, 7600, 7700, 7800
- 7010 Series: 7610, 7710, 7810
- 7210 Series: 7210
- 8000/8000T Series: 8100, 8100T, 8200, 8200T, 8300, 8300T, 8400, 8400T
- 8010/8010T Series: 8110, 8110T, 8210, 8210T, 8310, 8310T, 8410, 8410T
Specifications
- Power: 20W
- Effective light output: 1,900 lm (theoretical: 3,500 lm)
- 12/24V nominal; 10–30V operating range

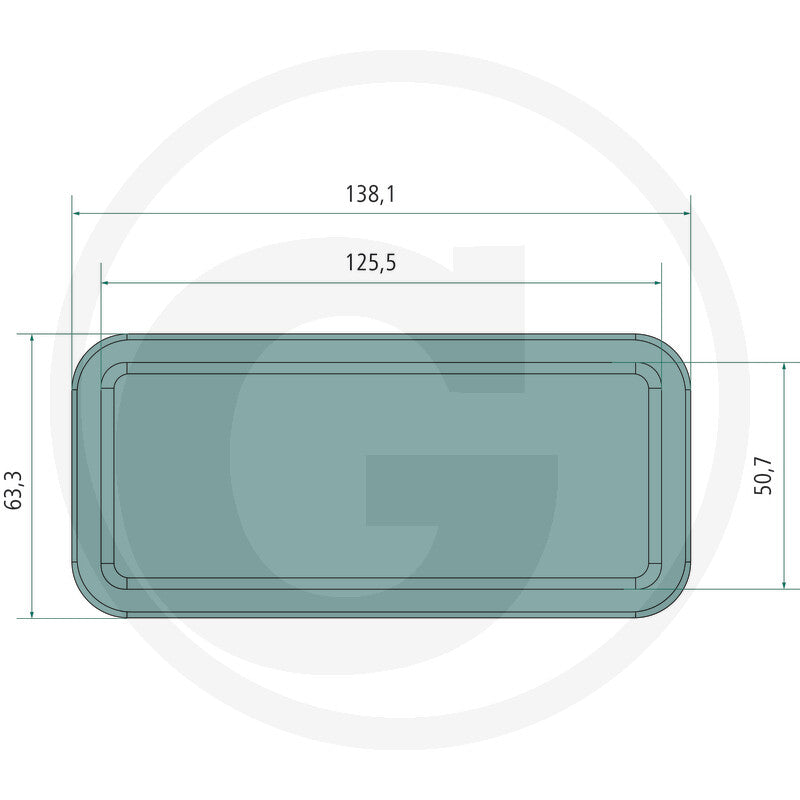

- Rectangular housing: 138 × 63 × 60mm
- 30 LEDs; 5,000–6,500K colour temperature
- Light aperture: 120 × 50mm

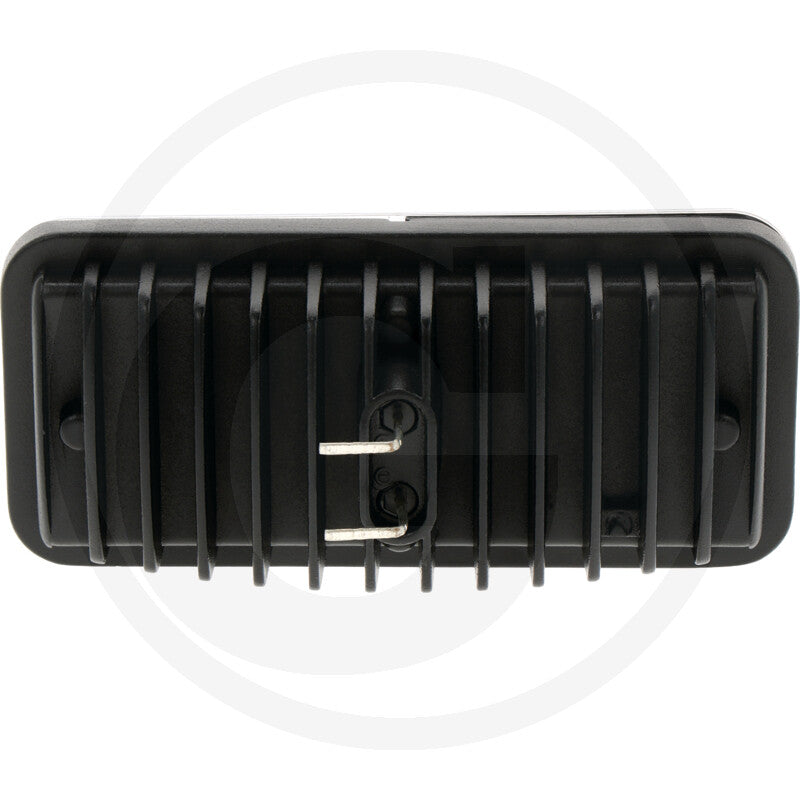

- Open cable ends; two-pin connection
- Vertical mounting; 60mm mounting size
- Aluminium housing, plastic lens and stainless-steel bracket
- IP67/IP6K9K protection
- CISPR25 Class 3; ECE R10 and CE compliant
- Operating temperature: −40°C to +50°C
- Weight: 316g
Confirm that R161288, the tractor series/model, wiring and mounting position match your application.
