John Deere 30W Oval LED Work Light – 12/24V, 3,500 lm
Description
Description

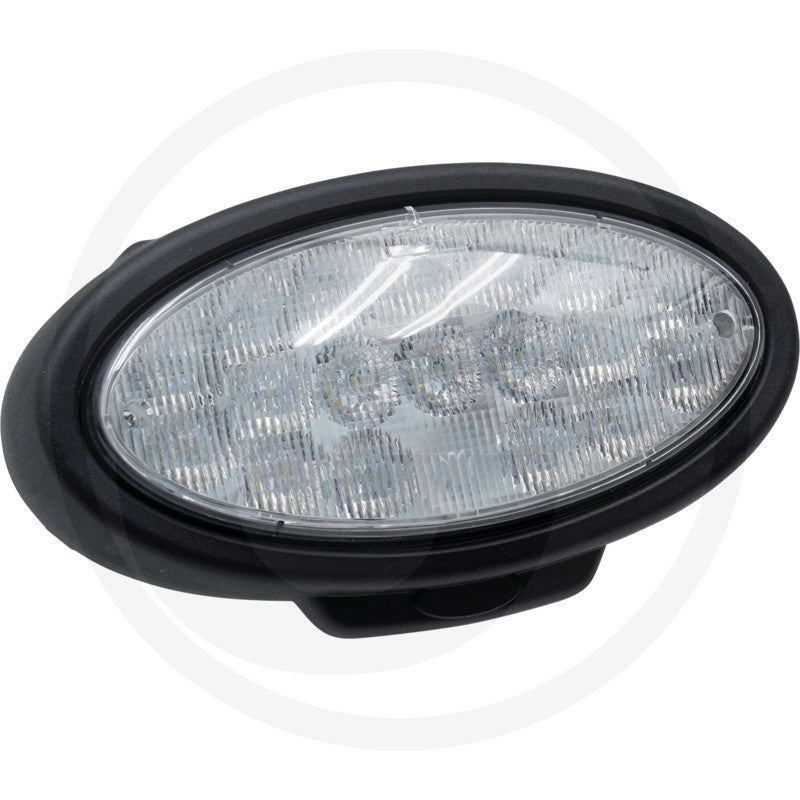

Oval 30W LED work light for the John Deere tractor series and models listed below. It combines close-range and far-reaching illumination and operates on 12V or 24V systems. The lamp uses an AMP connector and vertical M4 mounting; confirm these match your existing installation before ordering.
John Deere reference numbers
RE269637, RE331642, AL225025
Compatible John Deere models
- 5R/5RN Series: 5100R, 5125R
- 6M Series: 6100M
- 6R Series: 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R
- 7R Series: 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R
- 8R/8RT Series: 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT
- 9R/9RT/9RX Series: 9360R, 9370R, 9410R, 9420R, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX
Specifications
- Power: 30W
- Effective light output: 3,500 lm (theoretical: 4,100 lm)
- 12/24V nominal; 10–30V operating range

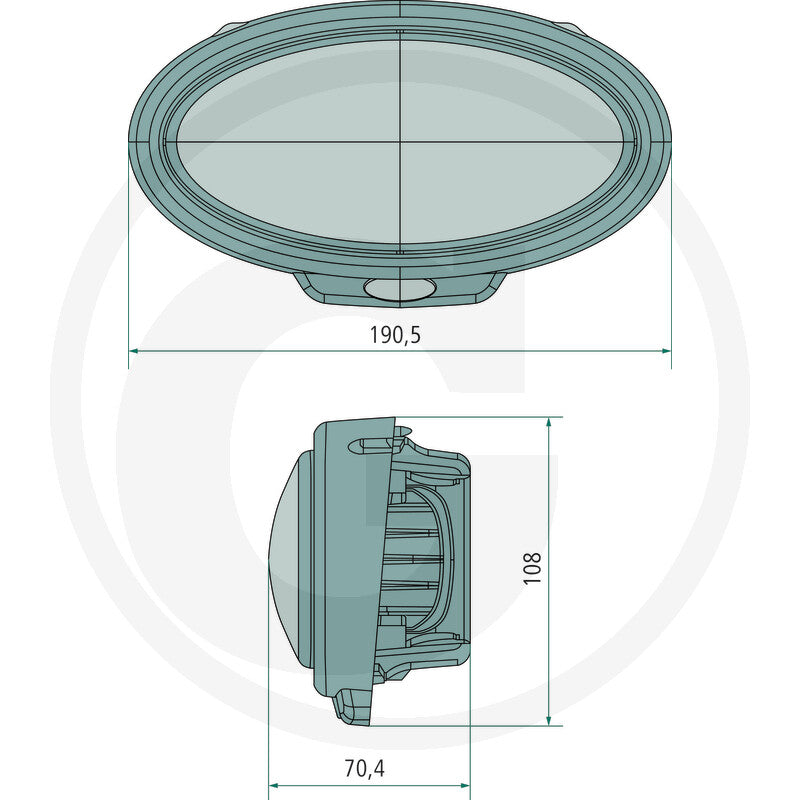

- Oval housing: 190.5 × 108 × 70.4mm
- 18 LEDs; 5,000–6,500K colour temperature

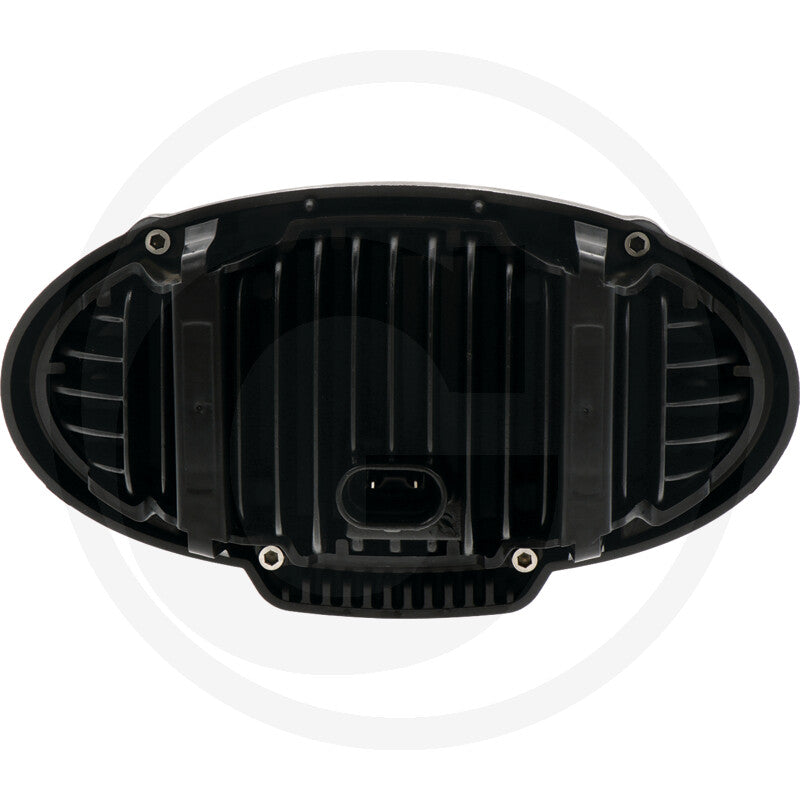

- AMP electrical connection
- Vertical M4 mounting
- Aluminium housing with plastic lens
- IP67/IP6K9K protection
- CISPR25 Class 3; ECE R10 and CE
- Operating temperature: −40°C to +50°C
- Weight: 726g
Check the exact tractor series, model, electrical connection and mounting position against your machine before purchase.
