NIGHTSHIFT 40W Round LED Work Light – 12/24V, 3,800 lm

40W round LED floodlight for listed Fendt and John Deere tractors and harvesting machinery. It produces 3,800 lm effective output and uses a built-in Deutsch DT 2-pin connector. Confirm the original lamp’s connector and mounting orientation before ordering.

Specifications

• Power: 40W
• Effective luminous flux: 3,800 lm (theoretical: 4,650 lm)
• Supply: 12/24V; operating range 10–30V
• Current draw: 3.33A at 12V
• Round lamp with 9 LEDs

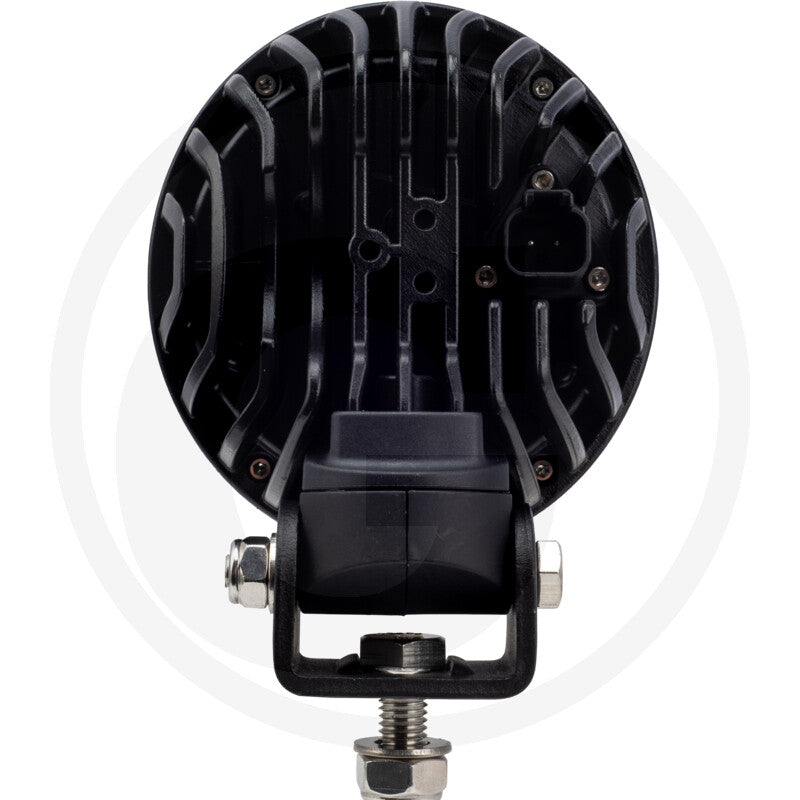

• Connector: built-in Deutsch DT 2-pin
• Mounting: vertical or lateral
• Aluminium housing
• Protection: IP6K9K/IP67
• Approvals: ECE R10, CE and RoHS; CISPR 25 Class 5
• Colour temperature: 5,700–6,500K
• Operating temperature: −40°C to +50°C
• Weight: 1.24kg

Manufacturer references and fitment

Fendt OEM references: G931901112022, G931901110012, G931901113012.

Fendt models: 200 Series — 207 (Type 330), 208 (331), 209 (332), 210 (333), 211 (334); 300 Series — 309 (Types 322, 336), 310 (323, 337), 311 (324, 338), 312 (325, 339), 313 (340); 400 Series — 411 (400), 412 (401), 413 (402), 414 (403), 415 (404); 500 Series — 512 (413), 513 (414), 514 (415), 516 (416); 700 Series — 712 (724), 714 (725, 732), 716 (726, 733), 718 (727, 734), 720 (735), 722 (736), 724 (737); 800 Series — 818 (729), 819 (832), 820 (731), 822 (833), 824 (834), 826 (835), 828 (836); 900 Series — 922 (919), 924 (922, 941), 927 (925, 942), 930 (928, 943), 933 (931, 944), 936 (934, 945), 939 (946).

John Deere OEM references: RE233263, RE219708, AL150478, AL119291, AL175529, AL202742, AL175528, AL202743.

John Deere models: 5E Series — 5055E, 5075E, 5083E/5083EN, 5085E, 5093E/5093EN, 5101E/5101EN; 5M — 5065M, 5070M, 5075M, 5080M, 5085M, 5090M, 5095M, 5100M, 5105M, 5115M; 5R/5RN — 5080R/5080RN, 5090R/5090RN, 5100R/5100RN; 6D — 6100D, 6105D, 6110D, 6115D, 6125D, 6130D, 6140D; 6E — 6105E; 6L — 6520L; 6M — 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M; 6MC — 6090MC; 3000 Series — 3200, 3400, 3800; 3015 — 3215, 3415; 3020 — 3220, 3420; 5020 — 5320, 5520; 5020/5020N — 5220, 5620, 5720, 5820; 5025/5025N — 5325N, 5425N, 5525N, 5625; 6015 — 6215 (PC4367), 6715; 6020/6020SE — 6120 (PC4356), 6220, 6320 (PC4357), 6420 (PC4357), 6420S, 6520, 6620, 6820, 6920, 6920S; 6030/6030PR — 6130, 6230/6230 PR, 6330/6330 PR, 6430/6430 PR, 6530/6530 PR, 6534/6534 PR, 6630/6630 PR, 6830/6830 PR, 6930/6930 PR; 7000 — 7200, 7300, 7400, 7500, 7700, 7800; 7030/7030PR — 7130/7130 PR, 7230/7230 PR, 7330 PR, 7430 PR, 7530 PR; 7050 — 7250, 7350, 7450, 7550, 7750, 7850, 7950; 7080 — 7180, 7280, 7380, 7480, 7580, 7780, 7980; C — C 670; CTS — CTS 9780; T — T550, T560, T660, T670; W — W540, W550, W650, W660; WTS — WTS 9540, 9540i, 9560, 9560i, 9580, 9580i, 9640, 9660, 9680.
