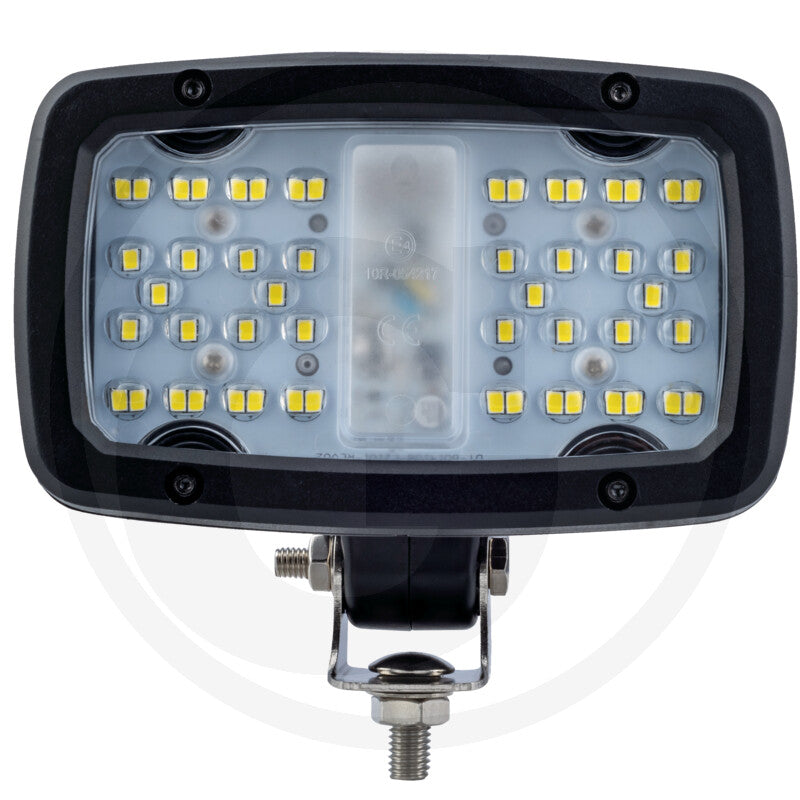

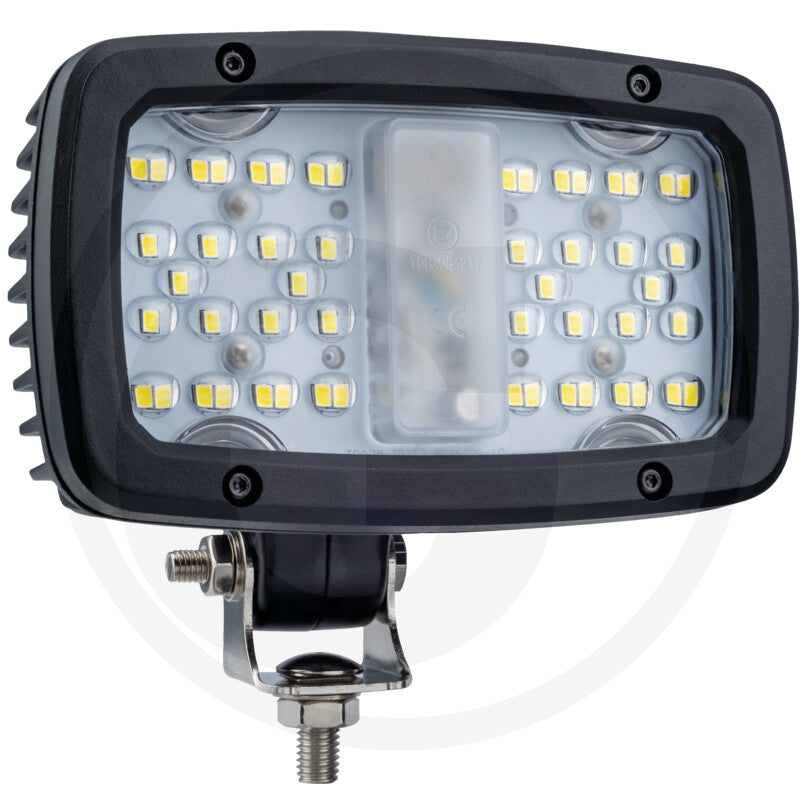

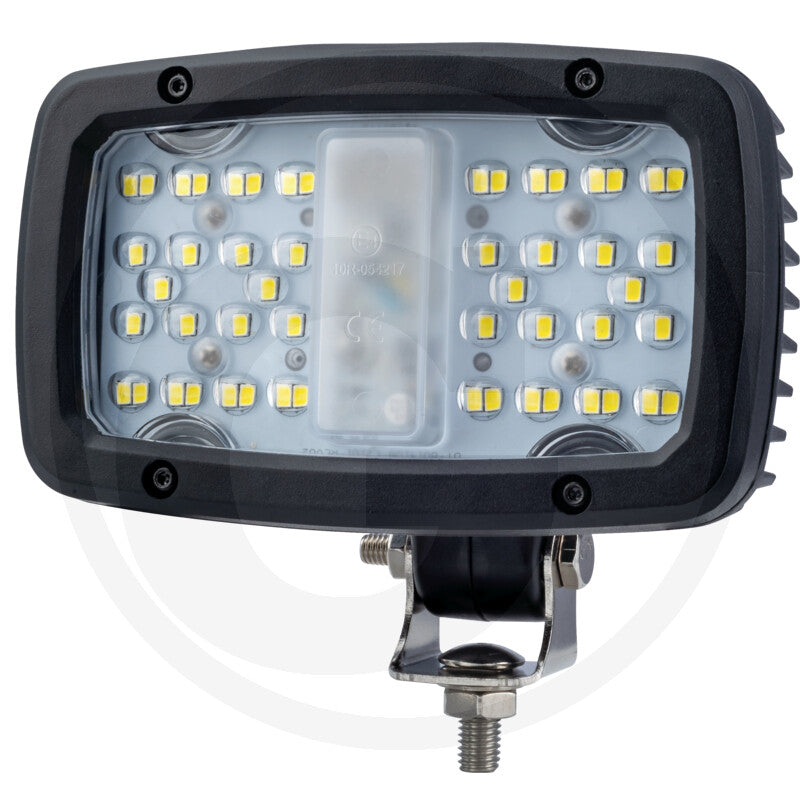

NIGHTSHIFT 50W 12/24V LED Work Light – 7,000 lm

High-output 50W LED work lamp for far-reaching illumination on compatible tractors and machinery. The 12/24V wide-voltage design, sealed housing and long open-ended cable suit agricultural and off-highway installations. Check the connector, mounting position and machine reference before ordering.

Specifications

• 50W; 52 LEDs; effective light output 7,000 lm (theoretical 8,840 lm)
• 12/24V nominal; 10–30V operating range
• Rectangular, vertical/hanging M8 mount; 130mm mounting spacing

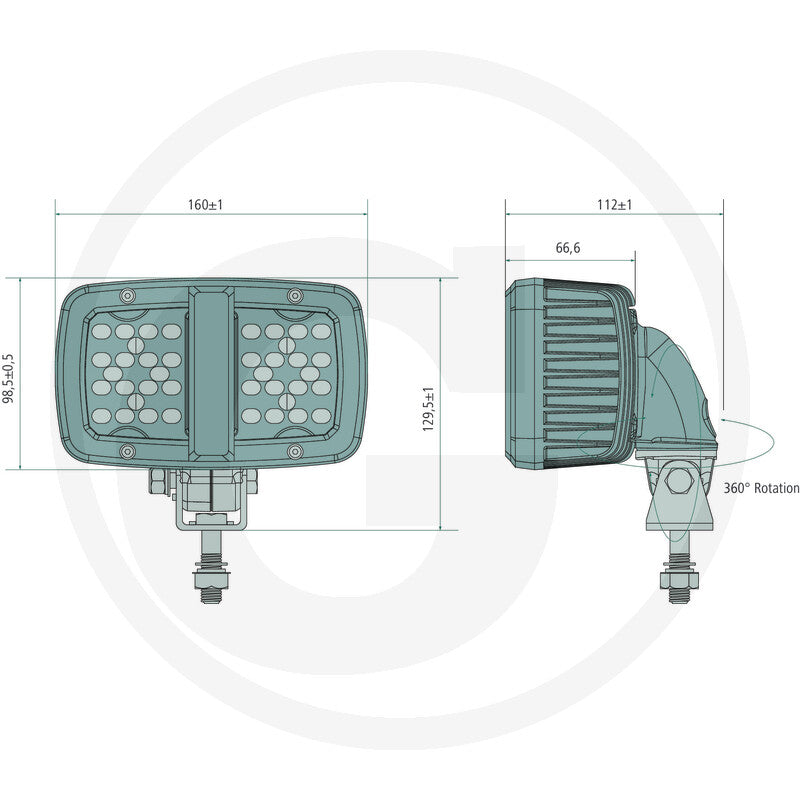

• Dimensions 160 × 98.5 × 66.6mm; depth up to 112mm by bracket position; 149 × 88mm light aperture
• 1.5m cable with open tinned red-positive and black-negative ends
• Aluminium housing, plastic lens, stainless-steel bracket
• IP67 / IP6K9K; CISPR25 class 3; ECE R10, CE and RoHS
• 5,000–6,500K colour temperature; −40 to +50°C operating range
• Weight 1.27kg

Applications and manufacturer references

Case IH: references 1987491C2, 1-40-179-003, 1-40-179-002, 1 401 790 03, 1 401 790 02, 140179003, 140179002 and 060502070. 20 series 525/527; 32 series 3210/3220/3230; 42 series 4210/4220/4230/4240; 95 series 495 XL/595 XL/695 XL/795 XL/895 XL/995/995 XL; Compact C42/C48/C55/C64/C70; CS48/52/58/63/68/75/78/80/86/90/94/100/110/120/130/150; CVX120/130/150/170 and CVX1135/1145/1155/1170/1190/1195; LBX331P/R/S, LBX421R/S, LBX431R/S; Mammut 8790. CS/CVX date variants are listed separately by the supplier.

Deutz-Fahr: D 4507C/4807C/5207C/6007C/6207C/6507C/6807C/6907C/7007C/7207C/7807C; Agrotron L 710/720; Agrotron M 600/610/620/640/650; MK3 80/85/90/100/105/106/110/115/120/135/150/160/165/175/200/230/260; New 80/90/100/105/108/110/118/120/128/130/140/150/150.7/155/165/165.7/180.7/210/215/235/265; TTV 610/620/630/1130/1145/1160; X710/X720. No Deutz-Fahr reference number was listed in the table.

Fendt: references G312900111031, X830160101130, G380902110010, F380902110010 and G312900110010. Farmer: 240S, 250S/V, 260P/S/V, 270P/V, 275S/V, 280P/S/V; 304–312; 409–412. Favorit: 509/510/511/512/514/515; 610/611/612/614/615; 711/712/714/716; 816/818/822/824; 916/918/920/924/926. Fendt 206S/207S/208S/209S; 309–313; 411–415; 711/712/714/716/718; 815/817/818/820; 916/918/920/924/926/930; GT 345/350/360/365/370/380/390/395; Xylon 520/522/524. Supplier model-type/production variants apply.

Hürlimann: XL-130/140/150/150.7/160/165.7/175/180.7/185; reference 04450666.

Kubota: KX018-4; no Kubota reference number listed.

Lamborghini: R6.130/140/150/150.7/160/165/165.7/170/175/180.7/185/190; R7.190/210; R8.215/230/265/270; Victory 230/260; reference 04450666.

Massey Ferguson: 3000 series 3050/3060/3065/3070/3075/3080/3085/3090/3095; 3100 series 3115/3120/3125/3140; 3600 series 3610/3630/3650/3660/3670/3680/3690 and 2nd generation 3635/3645/3655; 6100 series 6110/6120/6130/6140/6150/6160/6170/6180/6190; 6200 series 6235/6245/6255/6260/6265/6270/6280/6290; 8100 series 8110/8120/8130/8140/8150/8160/8170/8180; 8200 series 8210/8220/8240/8250/8260; 9000 series 9240. No MF reference number listed.

New Holland: reference 9819611; BB940 P/R/S, BB950 R/S, BB960 R/S; FR9040/9050/9060/9080/9090; TF76/78; TX62/63/64/65/66/67/68.

SAME: reference 04450666; Diamond 215/230/260/265/270; Iron 130/140/150/150.7/160/165/165.7/170/175/180.7/185/190/210; Iron³ 190/210.

Fitment and reference information is provided for identification. Confirm the exact model, series, production variant and installation before purchase.
