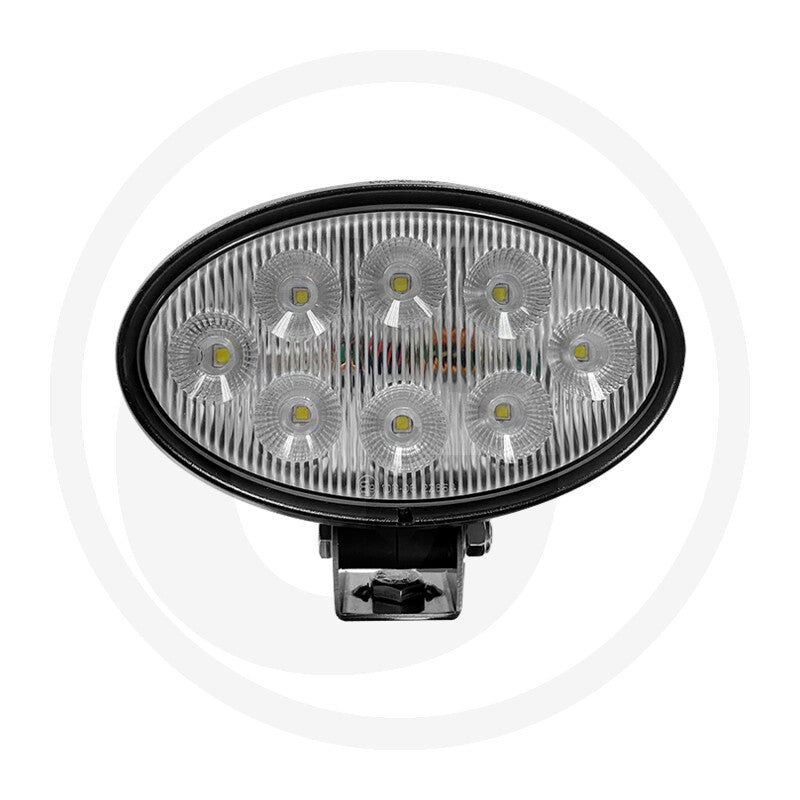

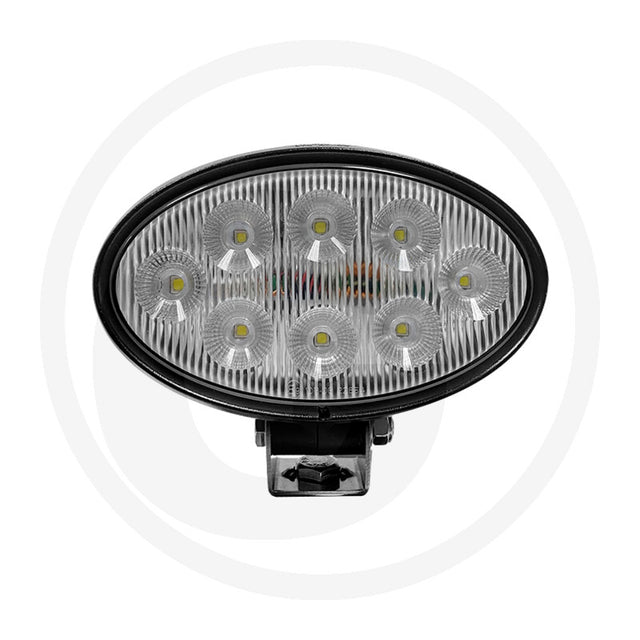

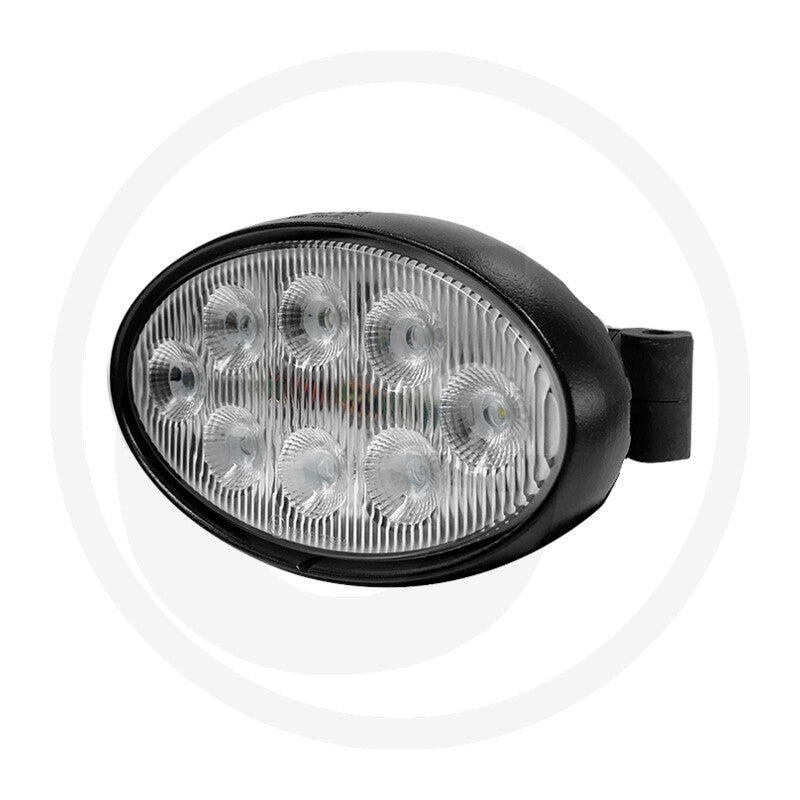

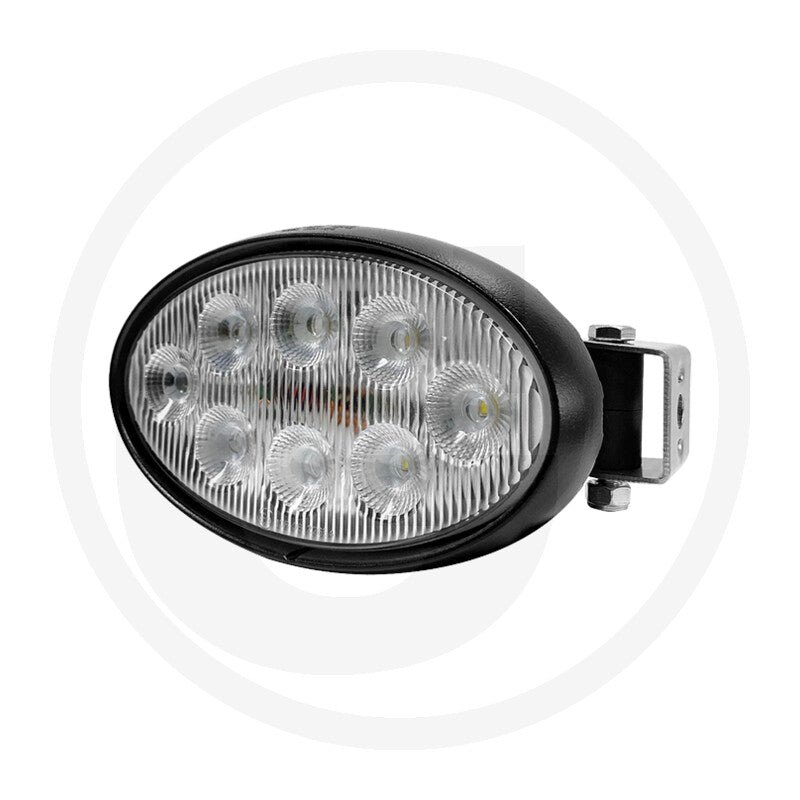

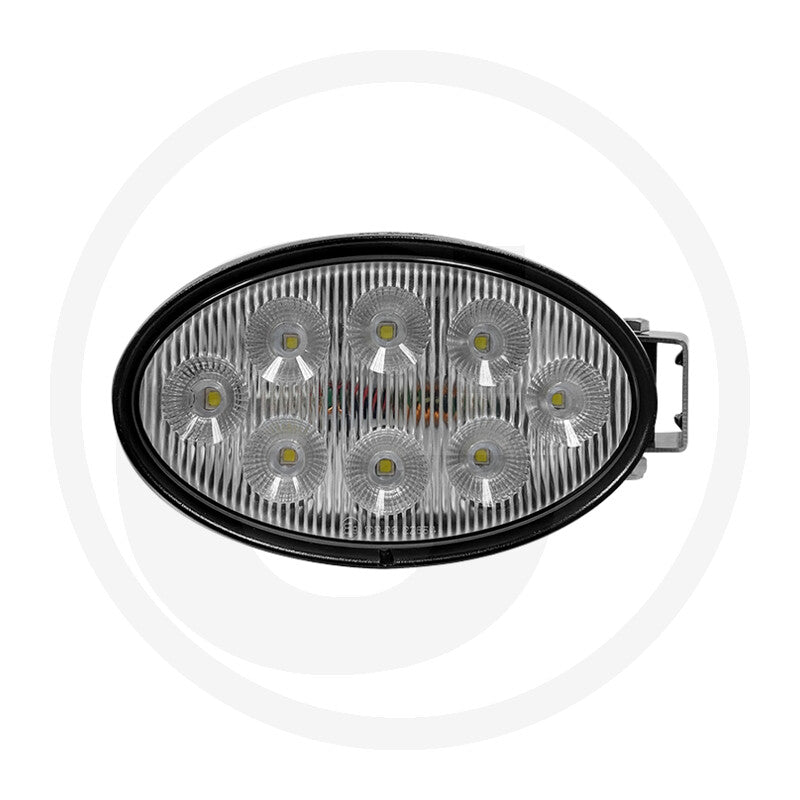

NIGHTSHIFT 56W Oval LED Work Light – 12/24V, 4,400 lm

56W oval LED work light with far-reaching illumination for compatible Challenger, Massey Ferguson and New Holland tractors. It uses an aluminium housing, swivelling M10 bracket and a DEUTSCH plug. Check the connector, mounting position and exact machine configuration before ordering.

Specifications

• 56W; eight 10W LEDs
• Effective luminous flux 4,400 lm; theoretical 5,320 lm
• 12/24V nominal; 10–30V operating range
• Dimensions 160 × 100 × 68mm
• Swivelling screw bracket, M10 × 30; 90° adjustment
• DEUTSCH plug; 120mm lead
• Aluminium housing; IP69K
• CISPR25 class 4; ECE R10, CE, RoHS and UKCA
• 6,000K colour temperature
• Weight 888g

Applications and manufacturer references

Challenger: reference 3786668M93. MT400B: MT425B/445B/455B/465B/475B. MT500B: MT525B, MT535B, MT545B, MT555B AutoPower VI/Techstar CVT variants; MT525B AutoPower VI Tier 3 and Techstar CVT Tier 3; MT565B; MT575B AutoPower IV (Sisu), AutoPower VI Tier 3 (Caterpillar), Techstar CVT (Sisu) and Techstar CVT Tier 3 (Caterpillar); MT585B and MT595B AutoPower VI/Techstar CVT variants. MT600B: MT635B/645B/655B/665B.

Massey Ferguson: references 3786668M93 and 4272829M91. 400 series: 425/425Xtra, 435/435Xtra, 440Xtra, 445, 455/455Xtra, 460/460Xtra, 470Xtra, 480/480Xtra; 1004/1104; 4709. 5400: 5410 (including Tier 3), 5420 Tier 3, 5425 (including Tier 3), 5430 Tier 3, 5435 (including Tier 3), 5440 Tier 3, 5445 (including Tier 3), 5450 Tier 3, 5455 (including Tier 3), 5460 (standard, Tier 3 and Tier 3 Sisu), 5465 (standard, Tier 3 Perkins and Tier 3 Sisu), 5470 (standard and Tier 3), 5475 Tier 3 Perkins/Sisu, 5480 Tier 3. 5600: 5608/5609/5610/5611 Dyna 6/5612 Dyna 4 or Dyna 6/5613 Dyna 4 or Dyna 6. 5700 S/SL: 5709/5710/5711/5712/5713. 6400: 6445 (standard/Tier 3), 6450, 6455 (standard/Tier 3), 6460 (standard/Tier 3), 6465 (standard/Tier 3 Perkins/Sisu), 6470 (standard/Tier 3), 6475 (standard/Tier 3 Perkins/Sisu), 6480 (Tier 3 Perkins/Sisu), 6485 (standard/Tier 3), 6490 (standard/Tier 3), 6495 (standard/Tier 3), 6497 (standard/Tier 3), 6499 Tier 3. 6600: 6612; 6613 Dyna 4/6; 6614 Dyna 6/VT; 6615 Dyna 4/6/VT; 6616 Dyna 6/VT. 6700S: 6712S/6713S/6714S/6715S/6716S/6718S. 7100: 7140/7150/7170/7180. 7400: 7465 (standard/Tier 3 Perkins/Sisu), 7475 (standard/Tier 3 Perkins/Sisu), 7480 (standard/Tier 3 Perkins/Sisu), 7485 (standard/Tier 3 Dyna VT), 7490 (standard/Tier 3 Dyna VT), 7495 (standard/Tier 3 Dyna VT), 7497 Tier 3, 7499 Tier 3. 7600: 7614; 7615 Dyna 4/6/VT; 7616 Dyna 6/VT; 7618 Dyna 6/VT; 7619 Dyna 6/VT; 7620 Dyna 6/VT; 7622 Dyna 6/VT; 7624 Dyna 6/VT; 7626. 7700/S: 7714/S, 7715/S, 7716/S, 7718/S, 7719/S, 7720/S, 7722/S, 7724/S, 7726/S. 8400: 8450/8460/8470/8480 Tier 2 and Tier 3.

New Holland: references 87343392, 87343390, 84273088, 84273089, 84254565 and 84254566. T4.55/65/75/85/95/105/115, including listed production dates, HI-LO and Tier 4a versions. T5.95/105/115 Electro Command and Tier 4 variants. T6.120/140/150/155/160/165/175 and T6.140/150/160 AutoCommand Tier 4. T7.170/175/185/190/200/210/220/225/230/235/245/250/260/270, with the supplier-listed Power Command, Range Command and AutoCommand variants. T5000: T5030/5040/5050/5060/5070. T6000: T6010/6020/6030/6040/6050/6060/6070 Tier 3; T6030/6050/6070/6080/6090 Power Command and Range Command variants. T7000: T7030/7040/7050/7060/7070 standard, AutoCommand and Power Command variants as listed.

Applications include model-year, transmission and engine variations. Match your exact configuration, existing lamp and plug before purchase; references are included for identification.
