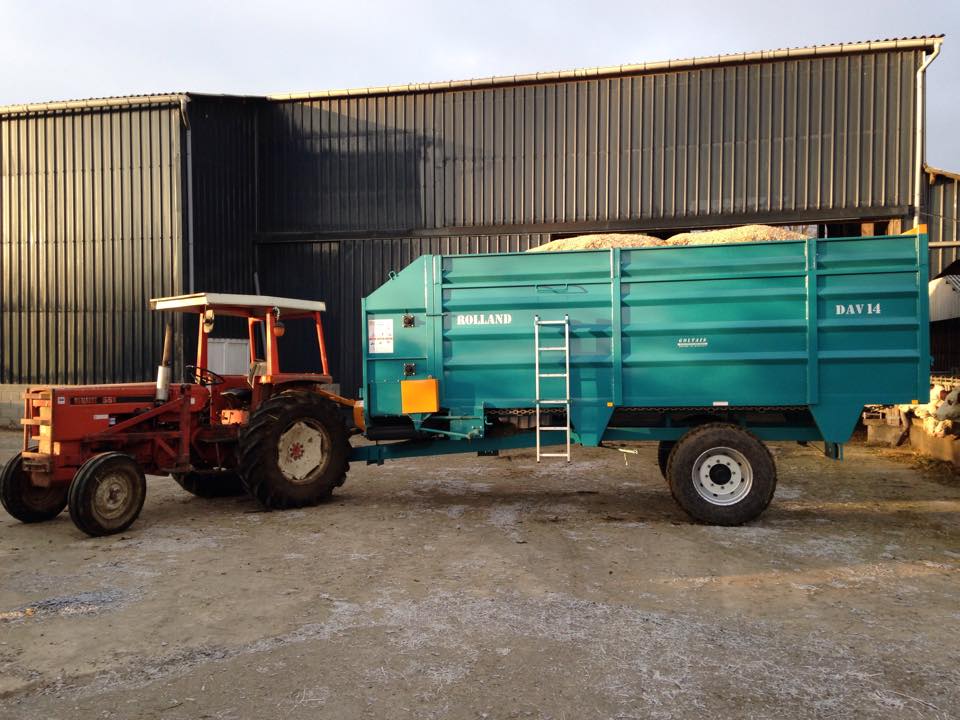

Rolland DAV Livestock Feeding Trailers
Machine Information
Machine Information
- Available to order
- Finance options available
- Part exchange considered
- Delivery available
- Contact us for current lead times
Request a Quote
Request a Quote
Looking for pricing, finance options or additional specifications? Click the Request a Quote button above and our team will be in touch.
Description
Description
PRICE ON APPLICATION
Choose your model and tell us the job it needs to do. We will confirm specification, availability and delivery with your quotation.
Bucket-loaded feeder-box trailers for distributing grass silage, maize silage and concentrates. The DAV range offers three manufacturer-listed capacities. A weighing system is an option; confirm discharge, control and tractor requirements when requesting a quotation.
Compare models | Model specifications | Brochures
Compare the models
Swipe or scroll across the table on smaller screens.
| Model | Length | Width | Capacity | Running gear |
|---|---|---|---|---|
| DAV 10 | 4100 mm | 1850 mm | Volume: 10 m3 | 1 axle |
| DAV 12 | 4100 mm | 1850 mm | Volume: 12 m3 | 1 axle |
| DAV 14 | 5000 mm | 1850 mm | Volume: 14 m3 | 1 axle or rocker beam |
Figures are manufacturer-listed and configuration dependent. Volume is not a weight payload. Body extensions, tyre sizes and selected options can change dimensions and usable capacity. Confirm the final UK specification with your quotation.
Specifications by model
Open a model below to see its published technical details.

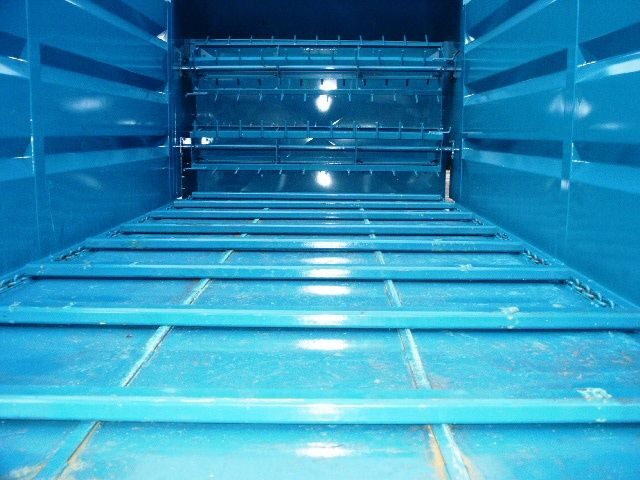

DAV 10 — specifications
| Body length | 4100 mm |
|---|---|
| Body width | 1850 mm |
| Side height | 1260 mm |
| Manufacturer-listed volume | 10 m3 |
| Number of beaters | 2 |
| Axle / running gear | 1 axle |
| Brakes | Hydraulic or air or mixed |
| Wheels | Various models on the catalogue |
| Drawbar | Fix |
| Jack | Manual Jack or hydraulic |
| Bed-floor chains | 2x12 |
DAV 12 — specifications
| Body length | 4100 mm |
|---|---|
| Body width | 1850 mm |
| Side height | 1260+320 mm |
| Manufacturer-listed volume | 12 m3 |
| Number of beaters | 2 |
| Axle / running gear | 1 axle |
| Brakes | Hydraulic or air or mixed |
| Wheels | Various models on the catalogue |
| Drawbar | Fix |
| Jack | Manual Jack or hydraulic |
| Bed-floor chains | 2x12 |

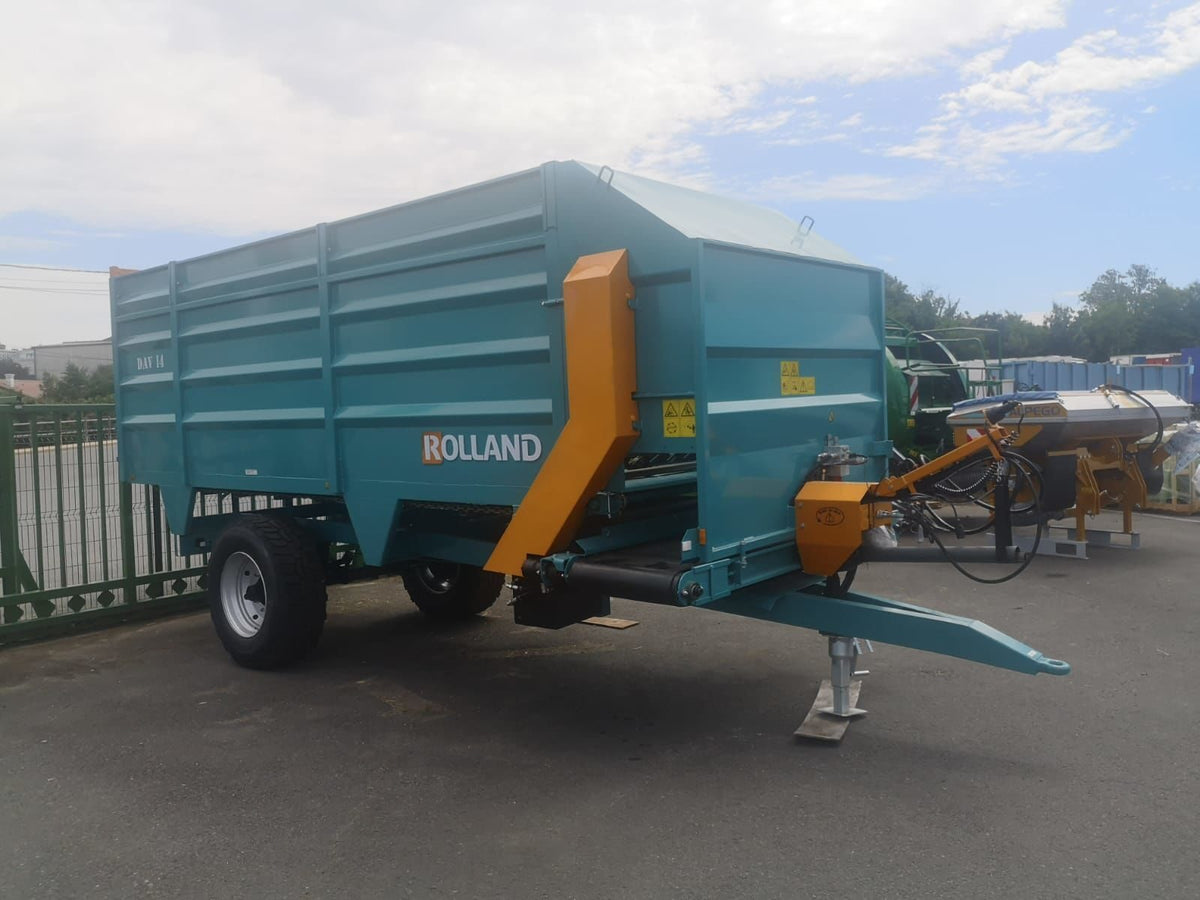

DAV 14 — specifications
| Body length | 5000 mm |
|---|---|
| Body width | 1850 mm |
| Side height | 1260+320 mm |
| Manufacturer-listed volume | 14 m3 |
| Number of beaters | 2 |
| Axle / running gear | 1 axle or rocker beam |
| Brakes | Hydraulic or air or mixed |
| Wheels | Various models on the catalogue |
| Drawbar | Fix |
| Jack | Manual Jack or hydraulic |
| Bed-floor chains | 2x12 |
Manufacturer brochures
Choose the right specification
Send us the model, your tractor make and model, intended material or load, required options and delivery postcode. We will confirm hitch and braking compatibility, current availability, the final equipment specification and delivery arrangements before an order is agreed.
Manufacturer photographs illustrate the range and may show optional equipment. This listing does not indicate that every model is held in stock.
